Description:
Model Available:
1. UDS-N2 LED Scaler KIT
2. UDS-N3 LED Scaler KIT

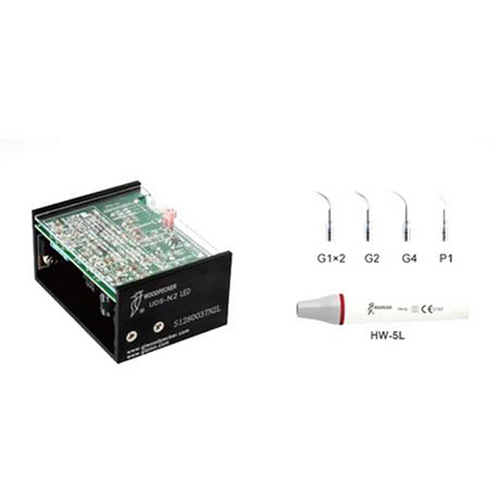

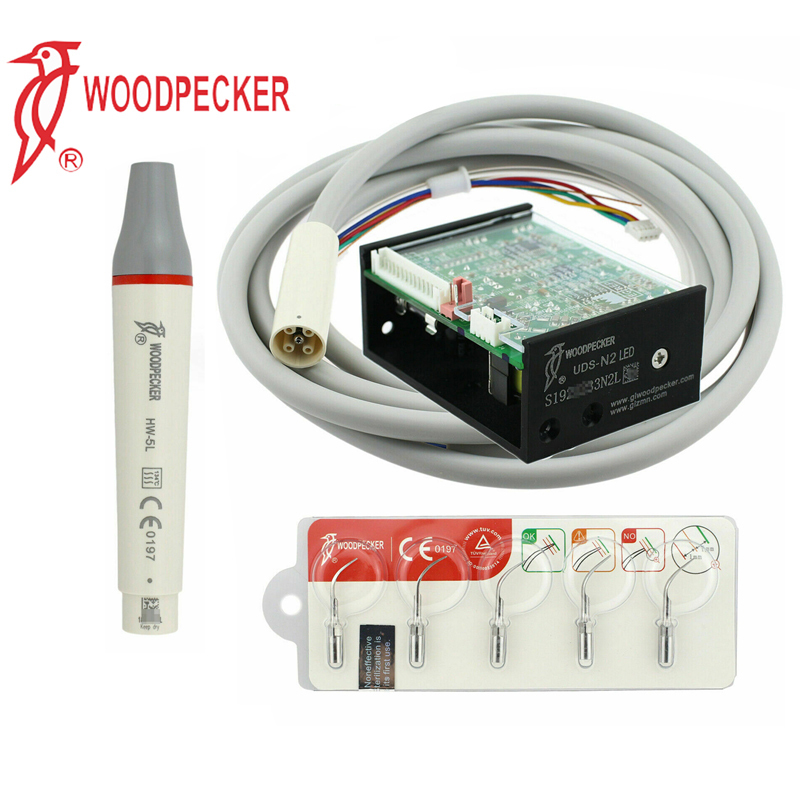

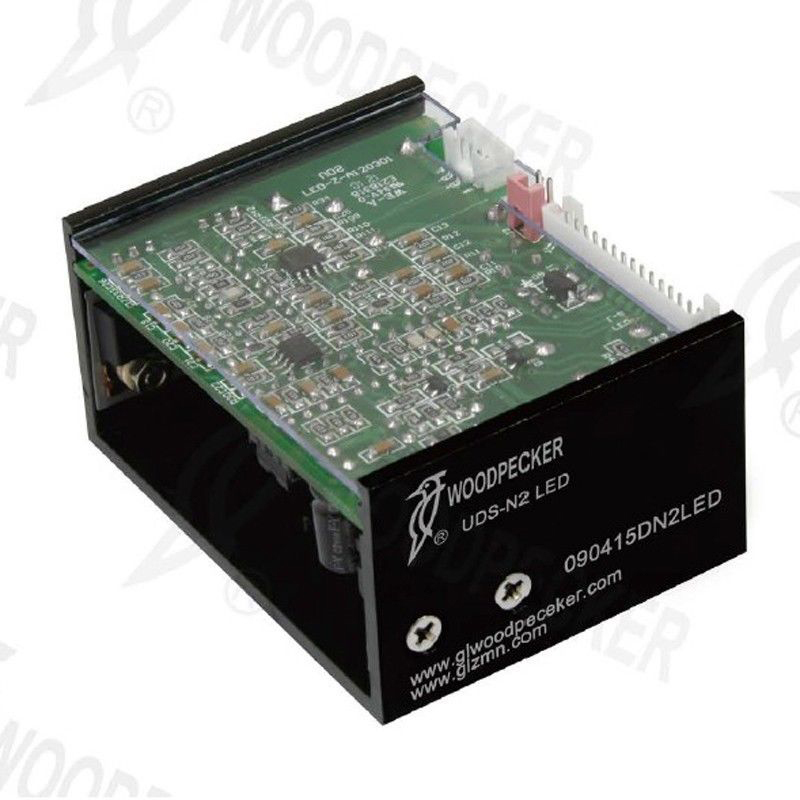

UDS-N2 LED Scaler KIT
Features:
1. Built in scaler

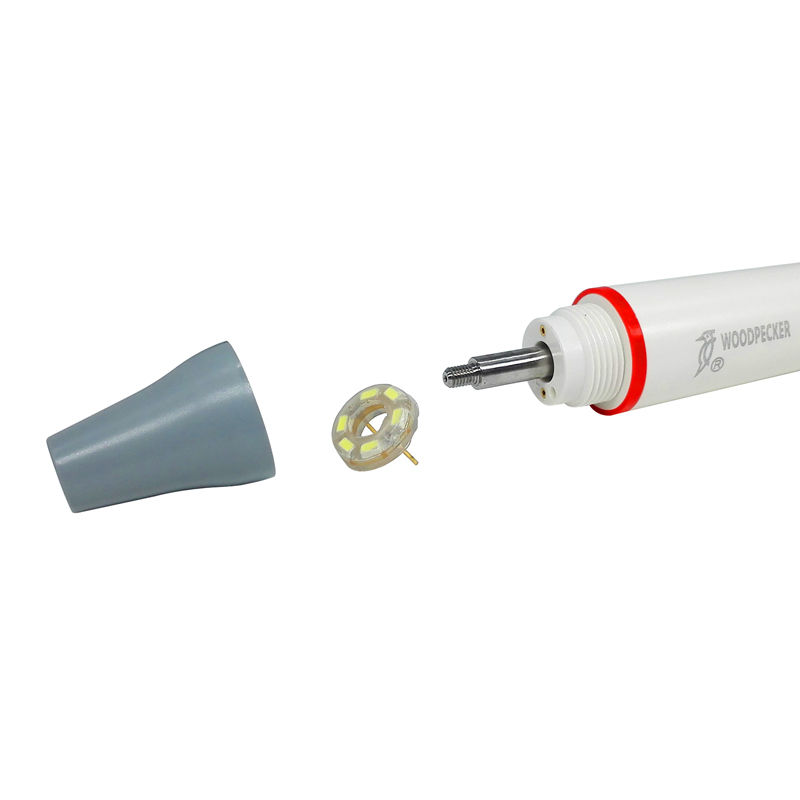

2. Detachable handpiece HW-5L with light. Compatiable with Woodpecker UDS Scalers (UDS-A LED, UDS-E LED, UDS-L LED, UDS-K LED, UDS-P LED, UDS-N2 LED, UDS-N3 LED etc.)
3. Automatic frequency tracking.
4. Scaling, endo function.
5. Accurate feedback control and constant power output, ensure a more comfortable feeling to patients.
6. Woodpecker compatible with EMS Brand
Technical Details:
1. Autoclavable under the high temperature of 135℃ and pressure of 0.22Mpa
2. Main unit input: 24V~ 50Hz/60Hz 1.3A
3. Output power: 3W ~ 20W
4. Frequency: 28kHz ± 3kHz
5. Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
6. Main unit weight: 0.2kg
7. Dimensions: 74mm×56mm×38mm

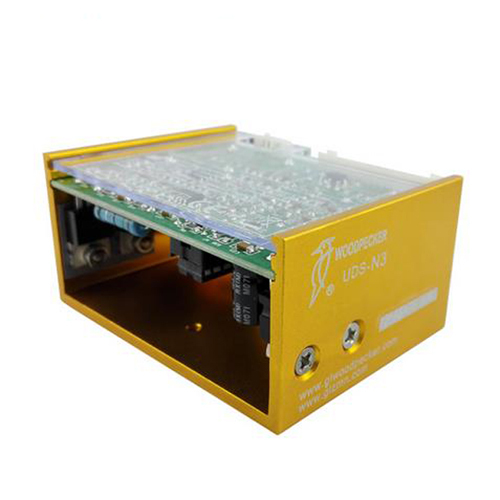

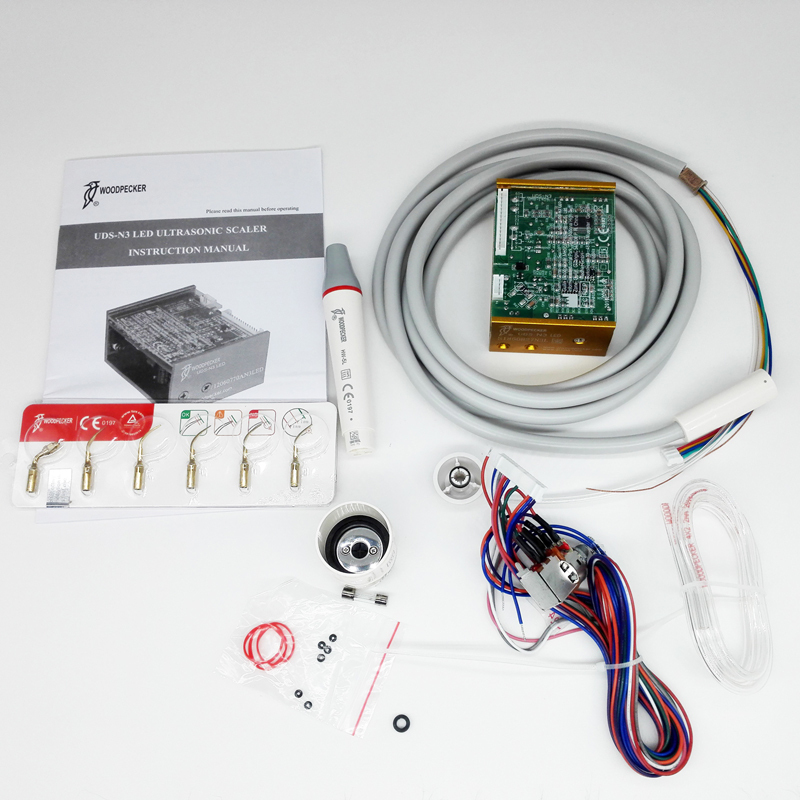

◼ UDS-N3 LED KIT
Features:
1. Special design for comprehensive dental chairs
2. Detachable handpiece HW-5L with light. Compatiable with Woodpecker UDS Scalers (UDS-A LED, UDS-E LED, UDS-L LED, UDS-K LED, UDS-P LED, UDS-N2 LED, UDS-N3 LED etc.)
3. Integrate scaling, endo, and perio function into a whole
4. Microcomputer control and automatic frequency tracking
5. With E1T G1T*2 G2T G4T P1T tips
6. With 15# 20# 25# 30# NITI K file
Technical Parameter:
1. Main unit input 24V~ 50Hz/60Hz 1.3A
2. Output power 3W ~ 20W
3. Frequency 28kHz ± 3kHz
4. Water pressure 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
5. Main unit weight 0.2kg
6. Dimensions 74mm×56mm×38mm

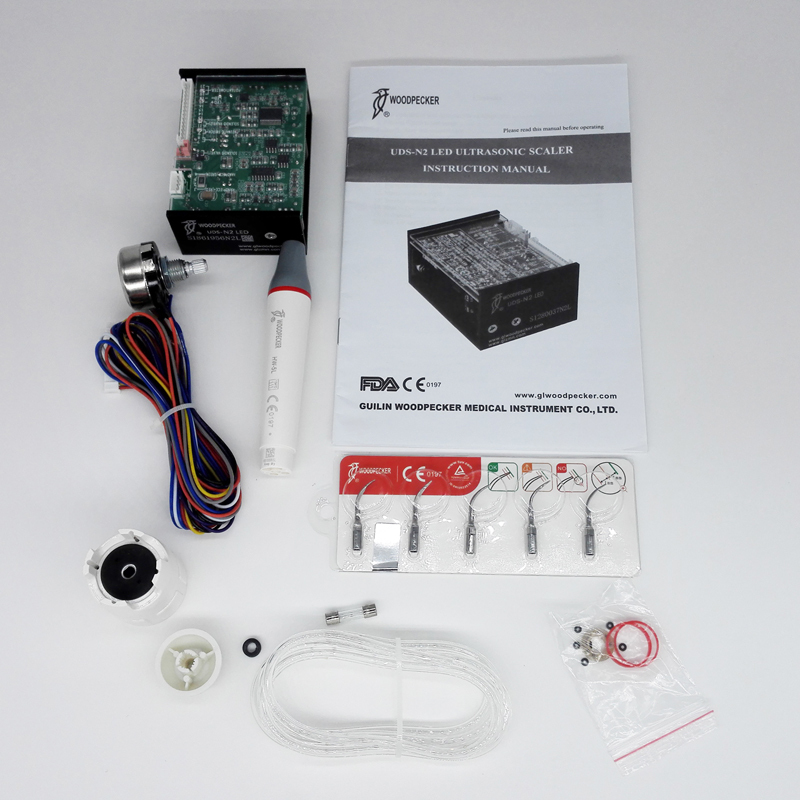

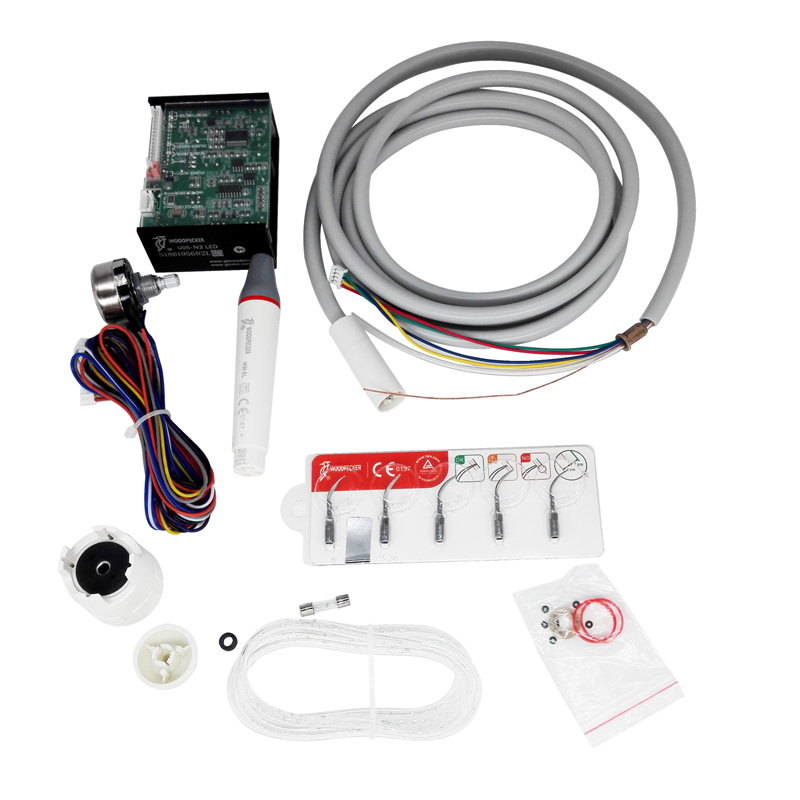

Packing List:
1. 1* Main unit
2. 1* Detachable handpiece
3. 1* Cable
4. 2* Scaling tip G1 (for Supraginggival Scaling)
5. 1* Scaling tip G2 (for Supraginggival Scaling)
6. 1* Scaling tip G4 (for Supraginggival Scaling)
7. 1* Scaling tip P1 (for Periodontal scaling)
8. 1* Torque wrench
9. 1* Water pipe
10. 1* Potentiometer knob
11. 1* Potentiometer and electronic pipe
12. 1* Cutting sleeve (for handpiece)
13. 6* Waterproof O ring
14. 3* Handpiece decorative ring
15. 1* LED lamp
16. 1* Instruction of LED lamp replacement
17. 1* Two-sided adhensive foam
18. 3* Nylon cable tie
19. 1* Instruction manual
20. 1* Quality certification
