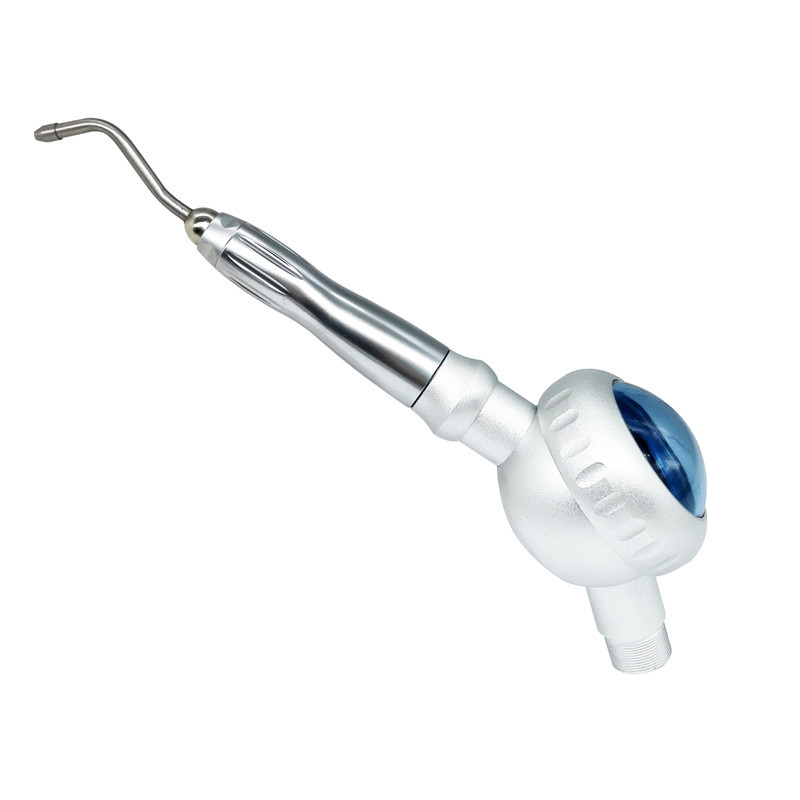

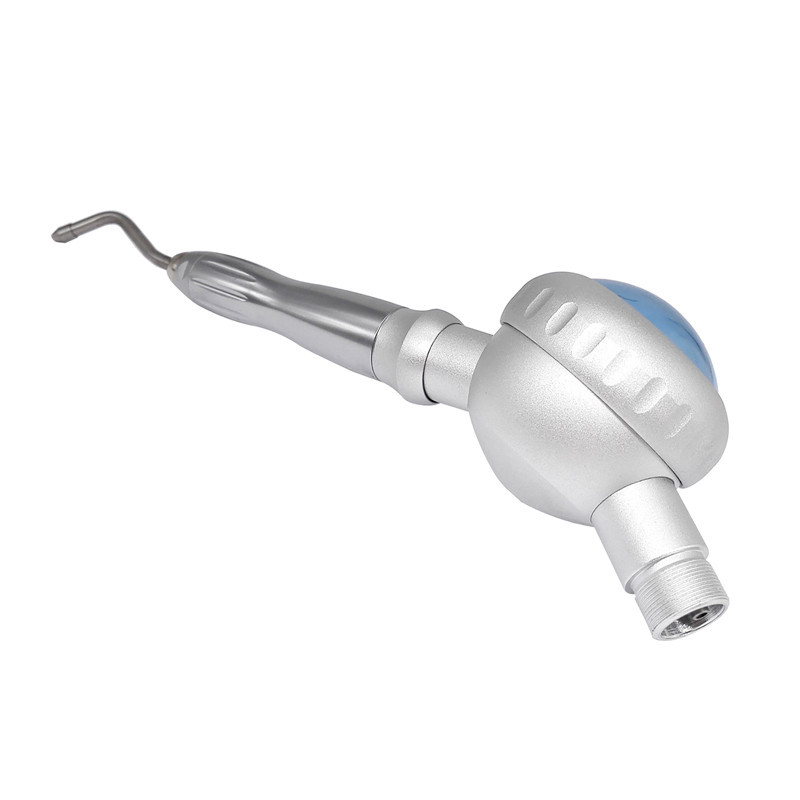

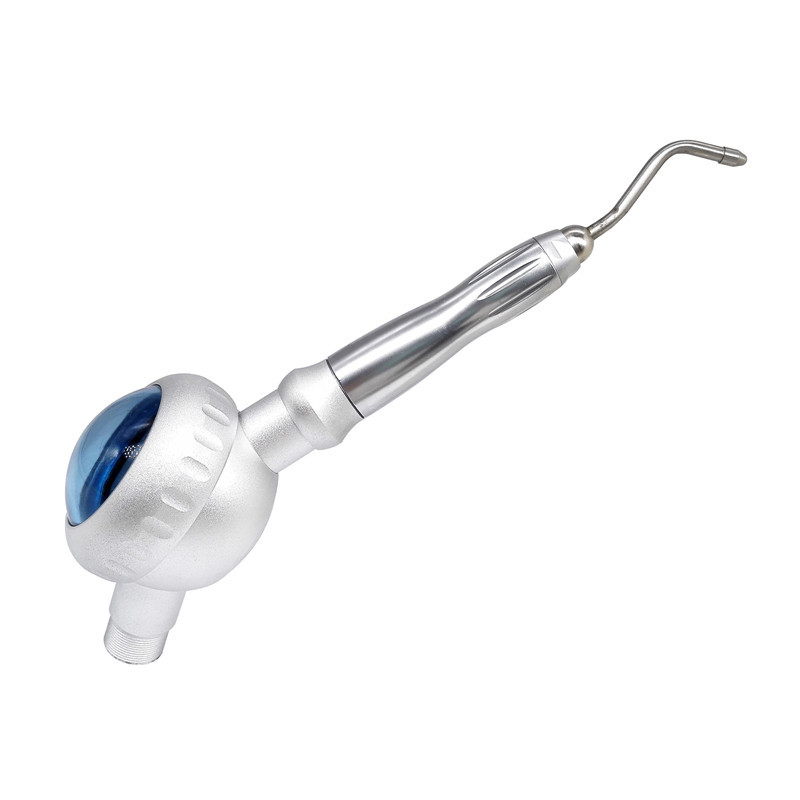

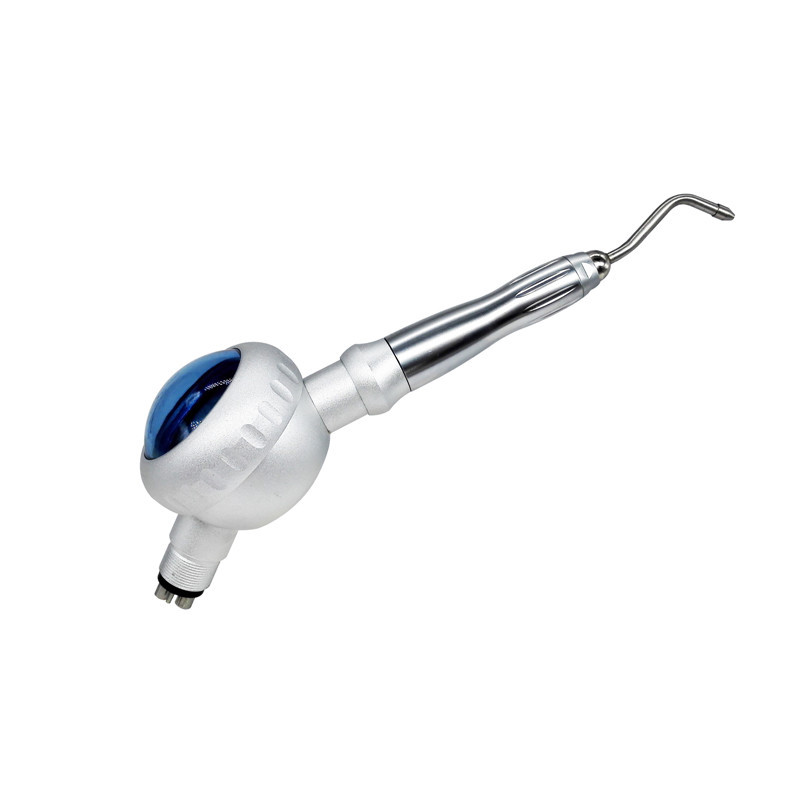

*NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes

SKU: VZ004612
Limited Offer!
0.0 (0 Reviews)
$59.00 $53.35
-3%
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $25.00 OFF ON ORDERS OVER $500.00
  • GET $60.00 OFF ON ORDERS OVER $1,000.00
    Please select the information you want X
  • model:
    2 Holes
    4 Holes
Quantity
-
+
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • *NSK STYLE Dental Air Flow Teeth Polishing Air Polisher Prophy Mate Unit2/4 Holes
  • Description
TDP-II TDP-III operation manual
[scope of application]: used to remove tartar in oral cavity
[model and specification] tdp-ii, tp-iii

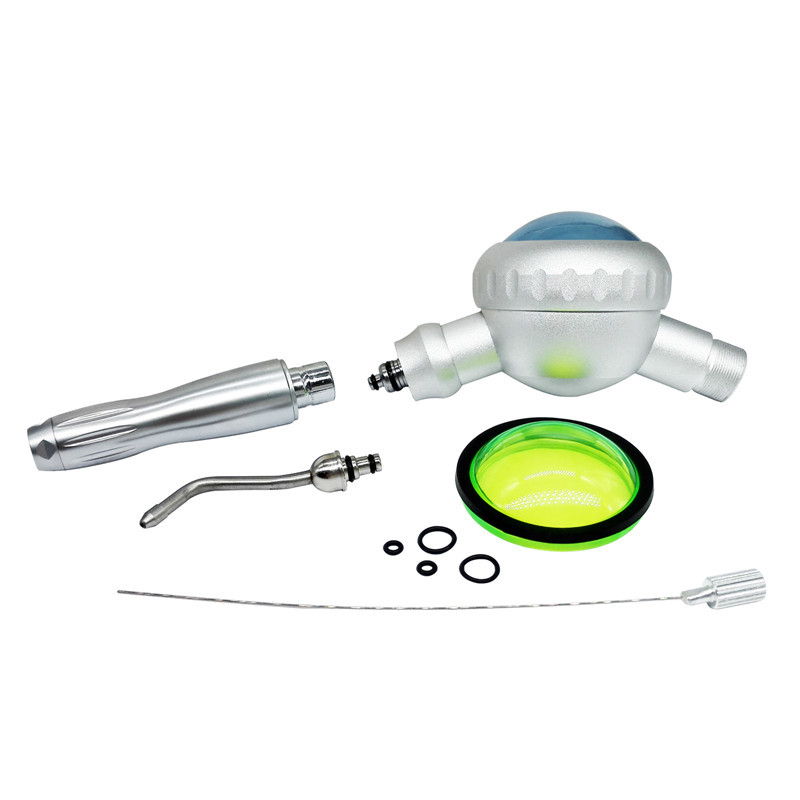

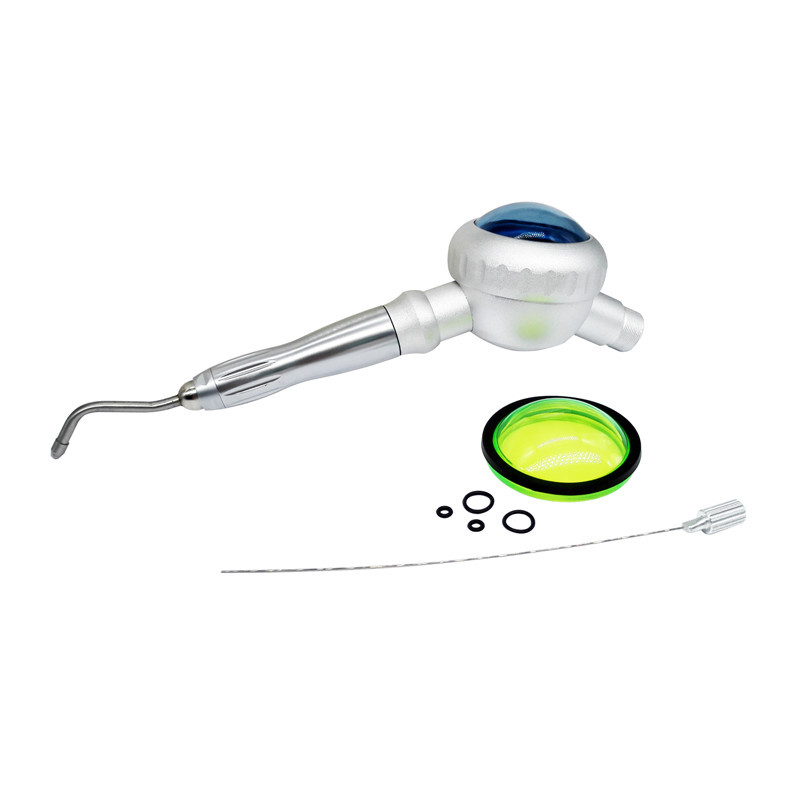

[structure composition] the structure of sandblasting gun consists of ① joint ② gun body ③ sandblasting cover ④ middle section ⑤ working head ⑥ dental sandblasting powder
The main raw materials are copper, aluminum, stainless steel and medical grade polycarbonate.
[Main performance]
1. The connection mode of sand blasting gun is as follows: connector (4 holes).
2. Water pressure: 0.2MPa ~ 0.4MPa
3. Air pressure: 0.3MPa ~ 0.4MPa
4. Spray water volume of working head: ≥ 30ml / min.
5. Sandblasting amount of working head: 1.5g/min ~ 3.5g/min
6. See the table below for the main technical indicators of dental sand blasting powder:
Total alkali content (calculated by narc03): 99 ~ 100.5
Dry reduction: ≤ 0.20
PH value (10g / L solution)% ≤ 8.6
Tablet (as) content% ≤ 0.0001
Heavy metal content (calculated by Pb)% ≤ 0.0005
Ammonium salt content: passed the test
Clarity: pass the test
[Usage]
1. Preparation

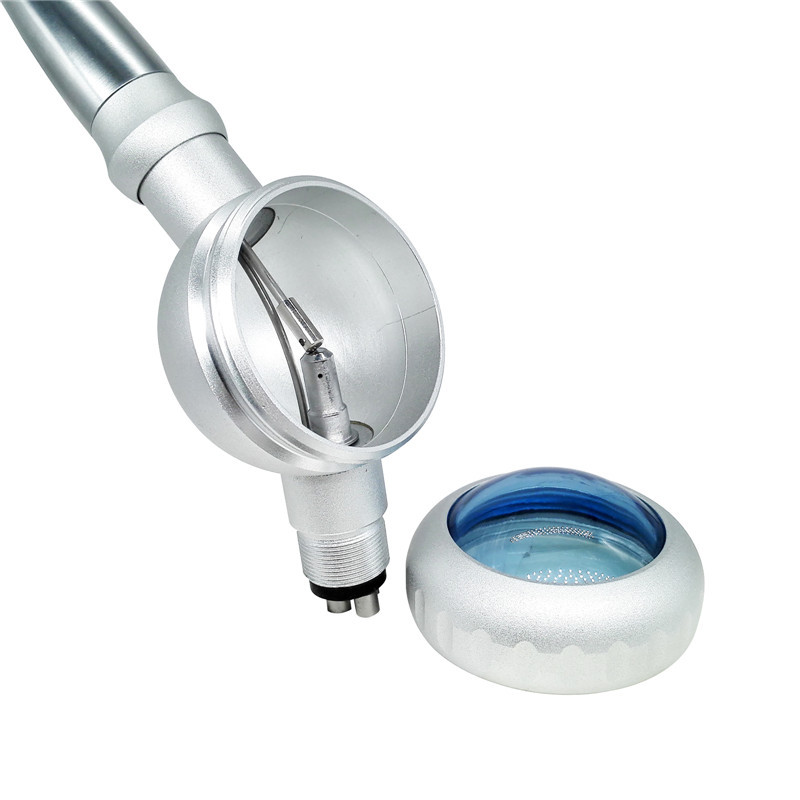

(1) under the condition that water and air are closed, unscrew the upper cover of the gun body, confirm that the sand tank is absolutely dry, put 9g of dental sand blasting powder (about 2 / 3 of the height of the tank), and then screw on and tighten the upper cover of the gun body, as follows:
First step
Release the upper cover of the gun body
The second step
Pour in dental sand blasting powder
The third step
Tighten the upper cover of gun body
(2) check whether the water and air pressure values of the comprehensive treatment table are within the specified range, and the compressed air shall be clean, dry and oil-free.
(3) during treatment, it is recommended that patients and doctors wear goggles.
2. Clinical operation
(1) place the nozzle of the working head 3-5mm away from the patient's teeth and 30-60 ° away from the teeth, step on the foot switch (foot switch of the comprehensive treatment table), and the sandblasting gun starts to work. The smaller the angle between the nozzle and the teeth, the larger the cleaning surface. During the treatment, it is better to move the nozzle in a small circle. The direction of the nozzle is from the tangent end of the gingiva, and it can only face the
insert the working head hard, so as to avoid possible injury to the sand blasting gun. Return the rotary connector of sandblasting gun and lock the working head. See the first, second and third steps in the illustration of installation part.

[Troubleshooting]:
1. Working head does not produce sand (gas plug)
(1) the dental sand blasting powder is damped.
Removal method: under the condition that there is no dental sandblasting powder in the tank, remove the working head from the sandblasting gun (see the installation drawing for the method), use the short dredger to dredge its air passage from front to back, and then use the working air of the three-purpose gun to blow it out.
(2) front end small "0-shaped damage,
Check the small "0" ring at the front end, if it is gnawed or damaged. Remove the "0" ring, clean the airway first (the method is the same as above), and then replace the "0" ring.
2. Working head does not produce sand (water plugging)
Due to impurities or intermittent use of the water source, the water pipeline is blocked by water bacteria.
Troubleshooting method: use a suitable hose, one end of which is sleeved at the front end of the working head, the other end of which is sleeved on the three-purpose gun, and use the three-purpose gun to blow air intermittently (air pressure ≥ 0.4MPa), so as to eliminate the fault.
3. The air path in the middle of the handle is blocked.
(1) the dental sand blasting powder is damped.
Exclusion method: under the condition that there is no dental sandblasting powder in the tank, remove the working head from the sandblasting gun (see the attached figure for the method of dental sandblasting powder installation), use a long dredger to dredge from the front end of the middle part of the handle to the back, use a short dredger to dredge the air holes in the tank in turn, and then use a three-way gun to blow from the front to the back.
(2) low grade sand blasting is used
Removal method: remove the original dental sandblasting powder (the same as above), and replace the original dental sandblasting powder. It is recommended to use the original dental sandblasting powder).
4. The middle section of the handle is blocked
(1) due to impurities in the water source or intermittent use, the water pipeline is blocked by water bacteria
Troubleshooting: to be handled by the manufacturer's maintenance personnel.
5. Air leakage on upper cover of gun body
(1) the dental sand blasting powder flows into the sealing surface of the gasket
Troubleshooting: unscrew the upper cover of the gun body, separate the cover from the gasket, and clean the gasket and the cover with soft cloth and three guns,
After confirming that it is clean, put the gasket back into the corresponding groove in the cover, and screw the cover back onto the gun body.
(2) the gasket is damaged enamel.
(2) during the treatment, the front working head of the sandblasting gun can be rotated (the standard bending angle is 120 °), and the direction of the nozzle can be adjusted to adapt to the teeth in different parts of the mouth.
(3) if the sandblasting gun is blocked during the treatment, release the foot switch and suspend the treatment. Disconnect the interface between the sandblasting gun and the high-speed mobile phone head, and dredge it according to the method of "note 1".
(4) after the treatment, release the foot switch, and remove the sandblasting gun from the patient's mouth after the sandblasting gun stops.
(5) ask the patient to rinse his mouth with water immediately.
3. Suggestions for patients
After treatment with sandblasting gun, the patient should try not to smoke, drink tea, coke or coffee or other food that may lead to pigmentation in a short time.
[note]
1. The maintenance personnel not confirmed by the company are not allowed to dismantle the sandblasting gun. Otherwise, the warranty right will be automatically waived.
2. If the sandblasting gun is not used for a long time, it is recommended to treat and store the sandblasting gun as follows:
(1) pour out all residual spraying powder in the gun
(2) step on the foot switch several times (the foot switch on the comprehensive treatment platform to remove the residual powder particles in the air passage of the sandblasting gun:
(3) remove the connection between sandblasting gun and comprehensive treatment table:
(4) sterilization and cleaning sandblasting gun:
(5) wrap the sandblasting gun and all parts with the original package.
3. The user must be a trained medical personnel before using the equipment.
4. Before use, it must be disinfected according to the instructions to avoid cross infection.
5. It is forbidden to disinfect the sandblasting cover. If cracks are found on the sandblasting cover, it is forbidden to use it. It is recommended that the customer replace it after two years!
[Disinfection]
Disinfection shall be carried out as follows:

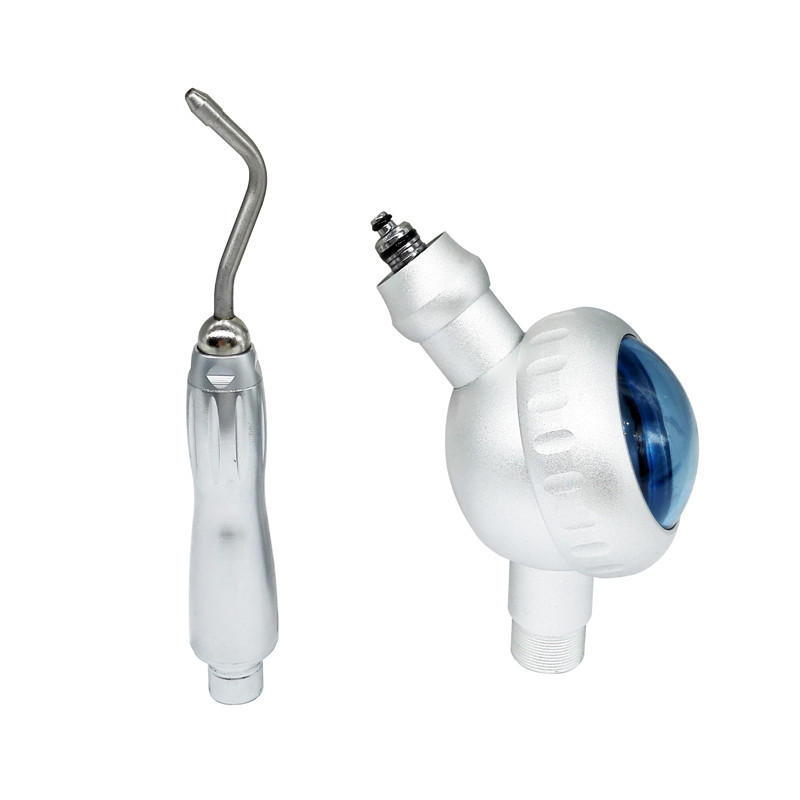

Push the sand blasting gun backward (in the direction of the tank body) to rotate the connecting piece so that the working head and the gun body can be opened according to the lock, and screw the working head off the sand blasting inspection body,
1. Do not pull the working head hard to avoid damaging the sealing ring. That is, reverse operation according to the first, second and third steps of the installation part.
2. Wipe the surface of the working head clean and do not soak it.
3. Wrap the working head with a special disinfection paper bag, or put the working head in a special disinfection box for disinfection.
4. The working head is sterilized with high temperature and high pressure by using a super-s disinfection furnace. The disinfection temperature is 121c.

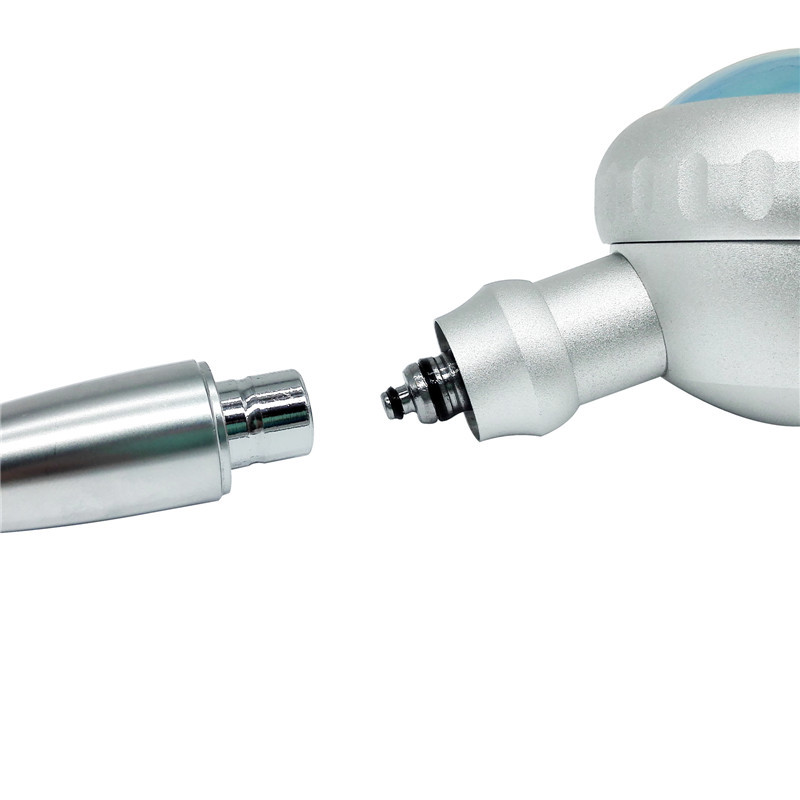

5. Push backward (in the direction of the tank body) the rotating connector of the sand blasting gun to open the connection lock between the working head and the gun body, align and screw on the interface between the working head and the sand blasting gun body, and remember not to
Troubleshooting: check the gasket. If it is gnawed or damaged, remove and replace the gasket (the same as above).
6. Water in the tank
(1) poor connection with high-speed mobile phone interface
Troubleshooting: reinstall.
(2) connection failure of water pipeline in the tank.
Troubleshooting: it needs to be solved by the manufacturer's maintenance personnel.
[Contraindications]
Patients with chronic bronchitis or asthma cannot be treated in this way, empty
Gas and dust may cause dyspnea: patients who limit salt intake do not
It can be treated with sandblasting gun because the basic material of dental sandblasting powder is sodium bicarbonate,
It contains a certain amount of salt; it is forbidden for loyal people with bleeding tendency.
