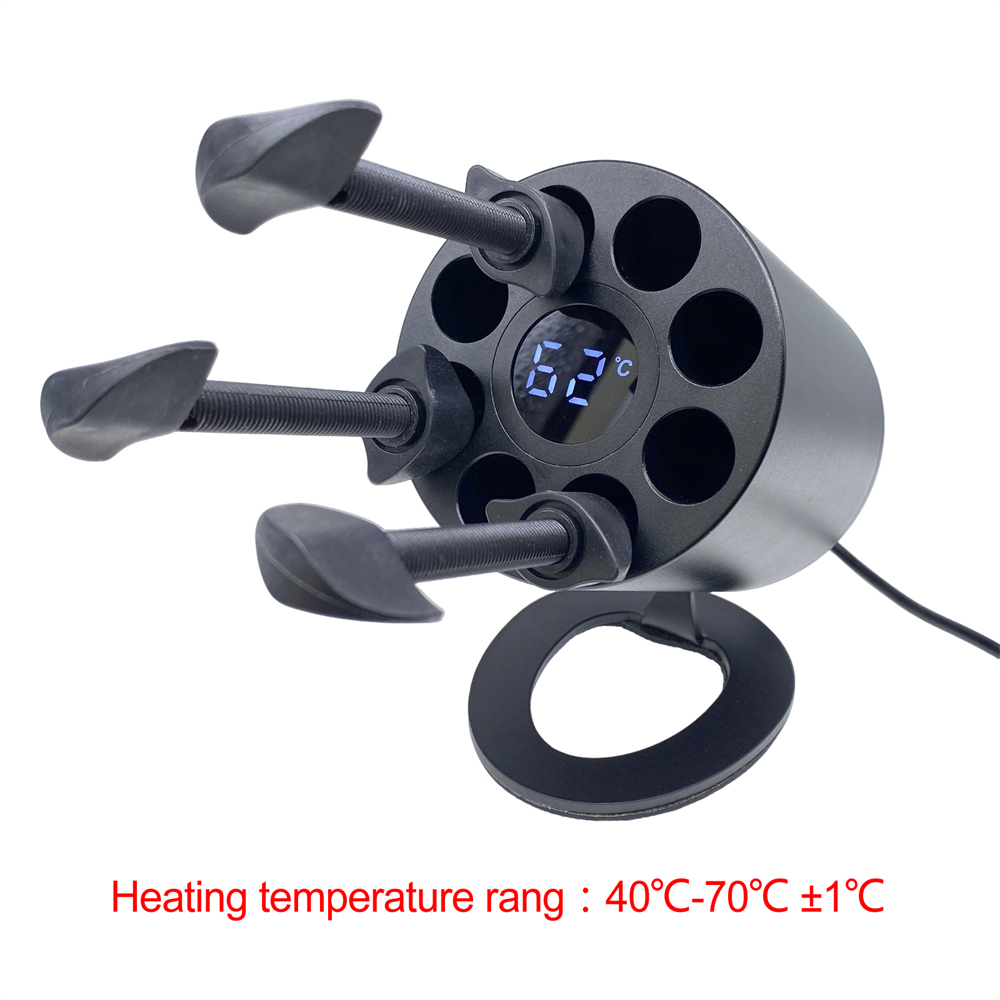

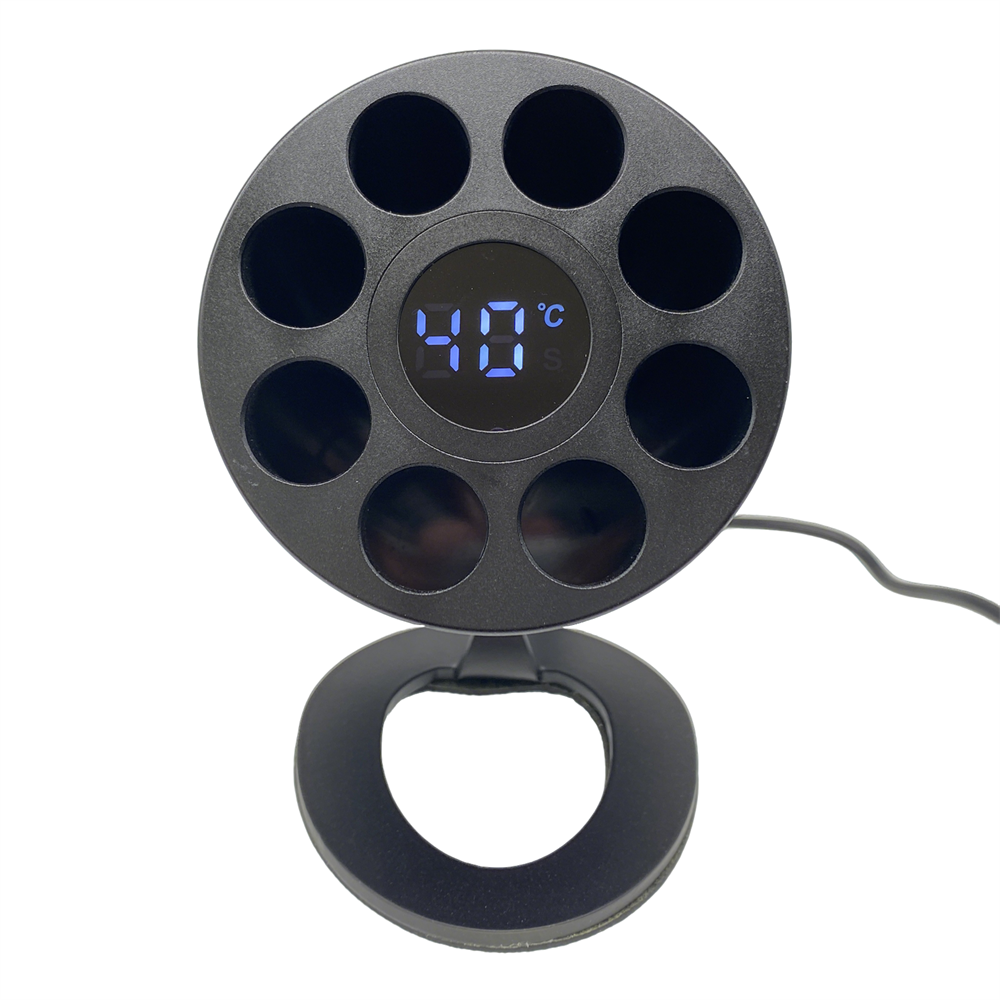

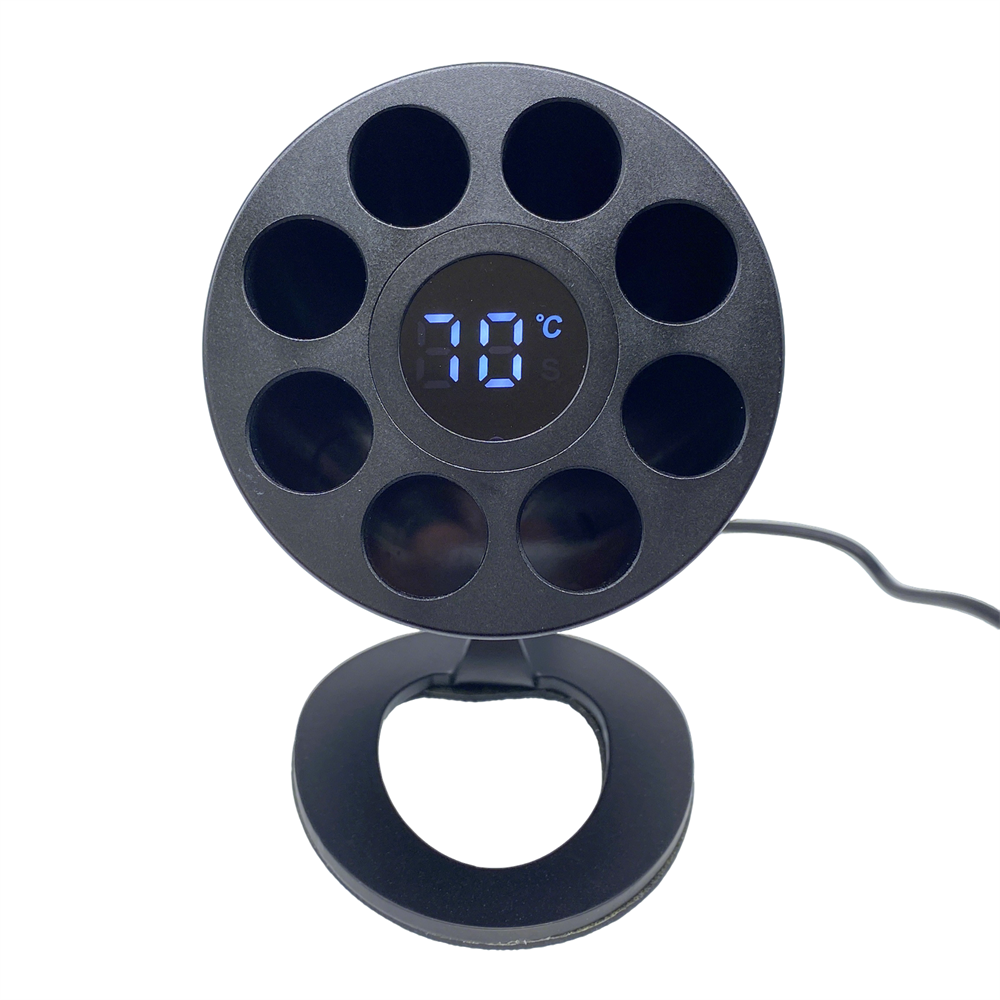

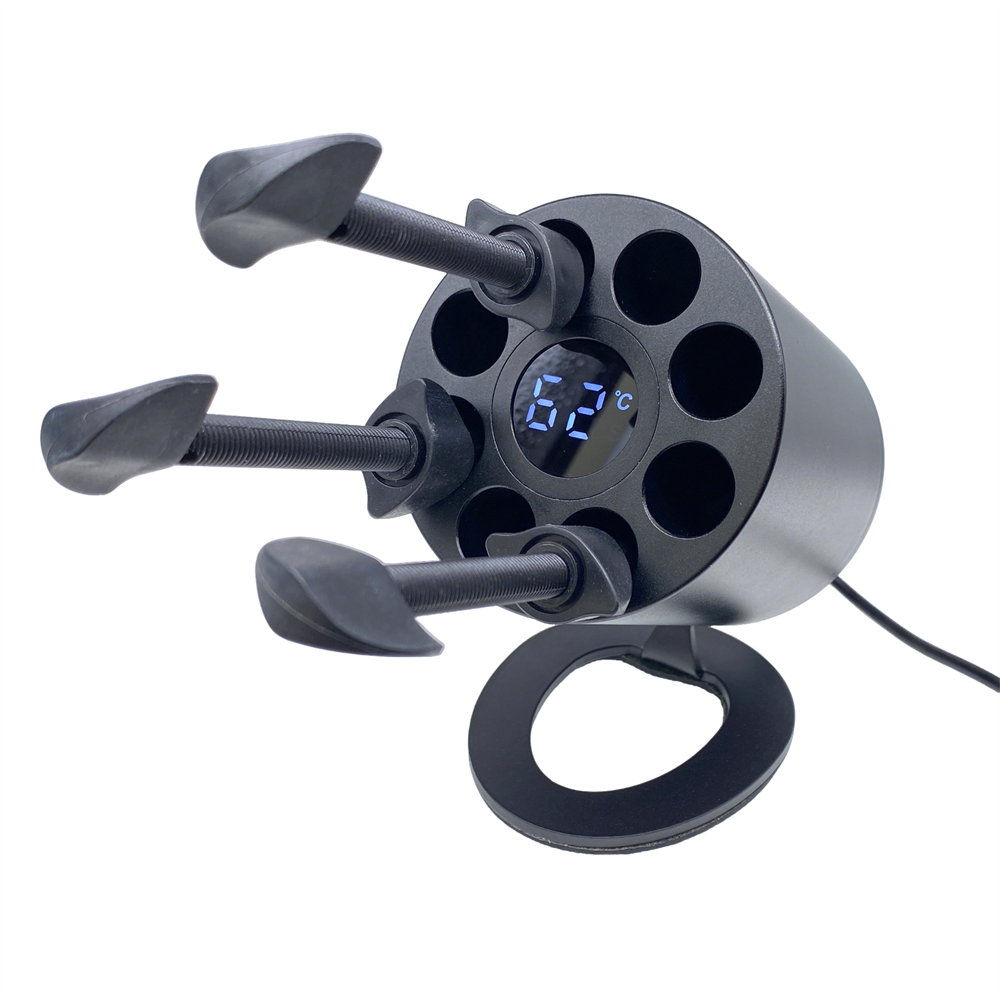

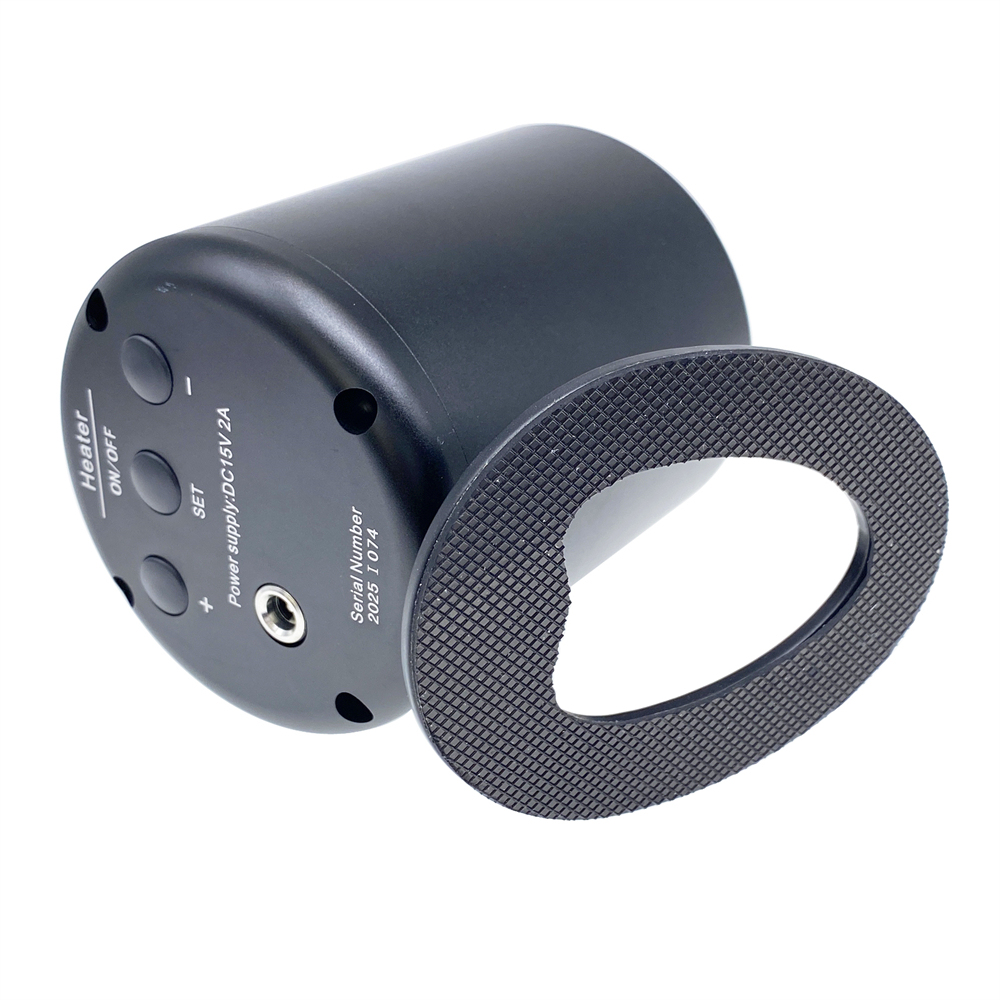

Dental Composite Resin Heater AR Heat Composite Warmer
Description:
1.Heater designed for heating composite resin material,improve the flow of its adhesive properties;
2.At the same time it can also be used to heat adhesive when used manual equipment;
3.Heater use the precision circuit control module to heat,control the temperature tolerance within 1 degree;
4.According to your choice of material and it can set any integer temperatue within 40-70℃.
5..Some materials and recommended temperatue:
No.
|
Material
|
Recommended temperatue(℃)
|
1
|
Resin(for filling)
|
39
|
2
|
Resin(for bonding)
|
55
|
3
|
Branscan
|
38
|
4
|
Agar film
|
Melting 99;Insulation 60
|
5
|
Sodium hypochlorite
|
60
|
Operation:
1.After plug the power supply,the digital tube is always on ” -- ℃ ”;

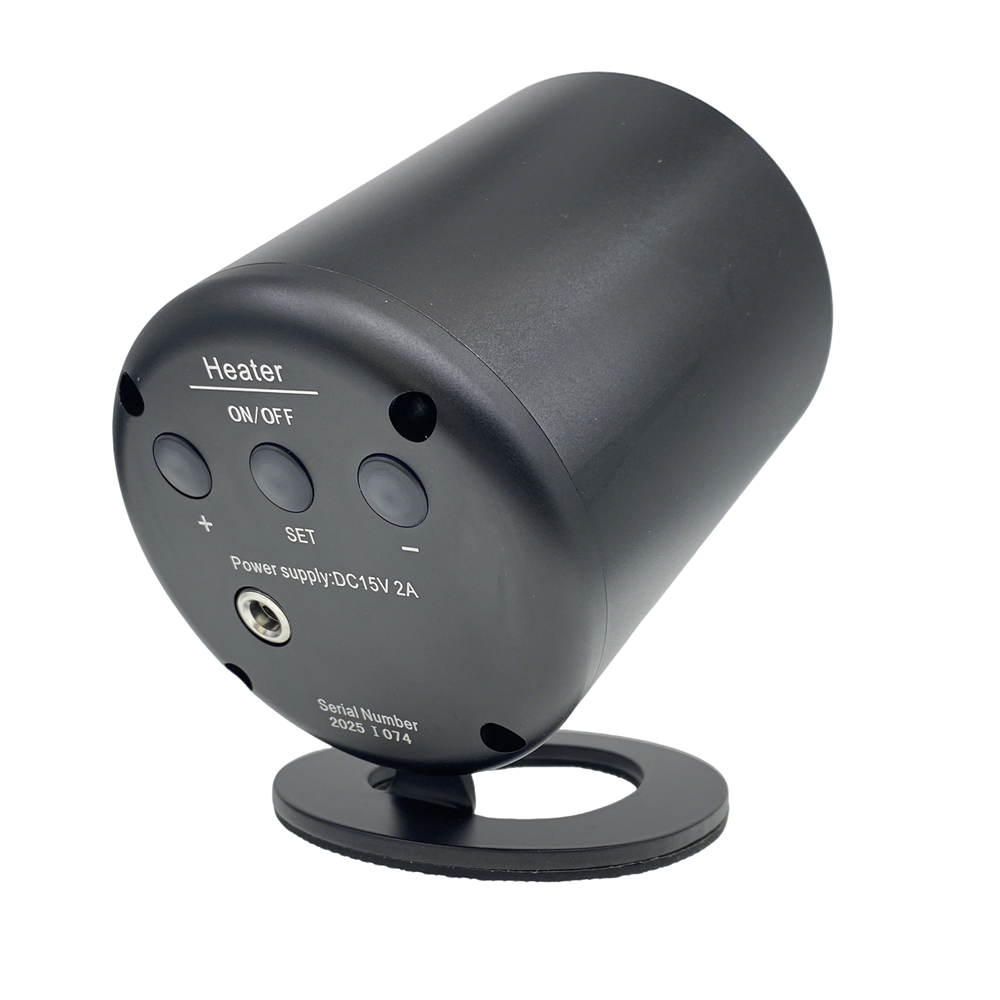

2.After plug the power supply,single press “ ON/OFF/SET ”;
3.Heater goes into the heating state according to the set temperatue at previous power-off;
4.It automatically stops heating after reaching preset temperatue;
5.After plug the power supply,single press “ + ” or “ - ” into the setup mode.Press “ + ” can increase the preset temperatue;
6.Press “ - ” can decrease the preset temperatue.After setting,single press “ ON/OFF/SET ” into the heating state;
7.It automatically stops heating after reaching preset temperatue.
Technical parameter:
1.Power adapter:
2.Input:AC100-240V 50/60Hz
3.Output:DC15V2A

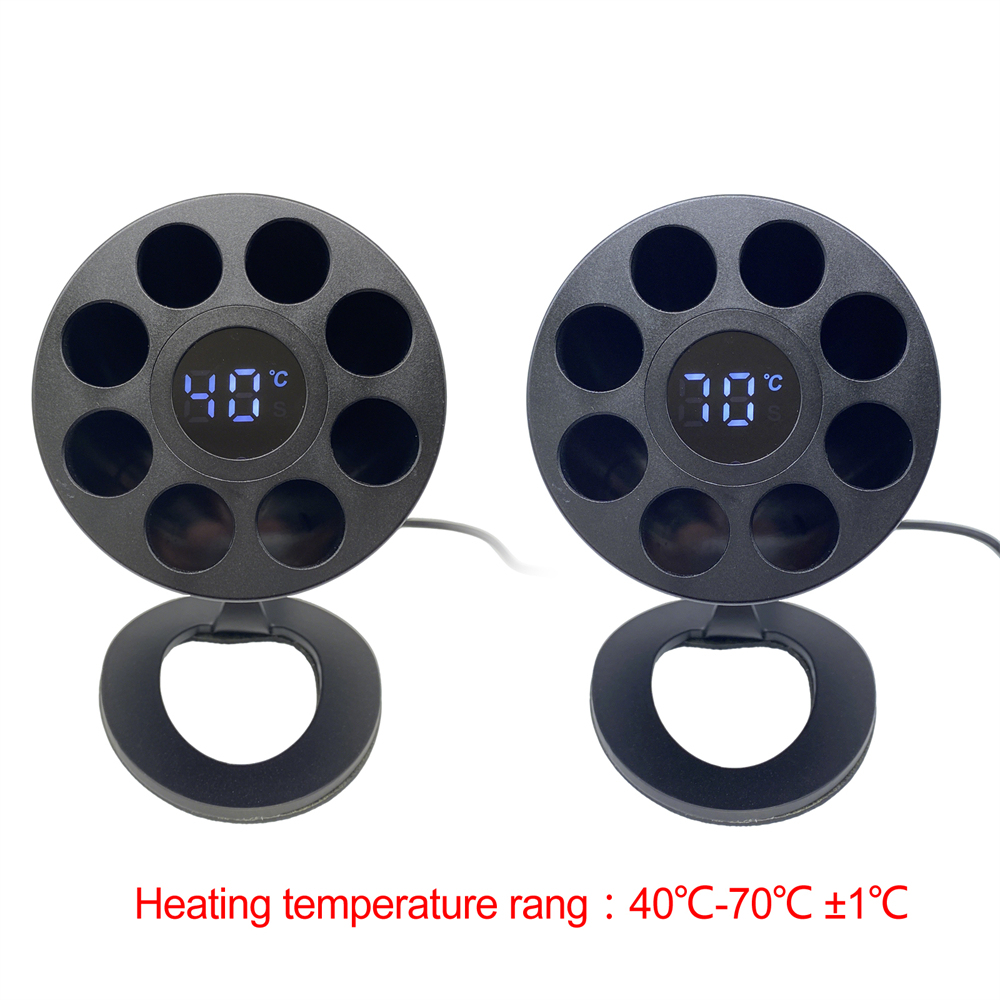

4.Heating temperatue range:40℃-70℃,±1℃

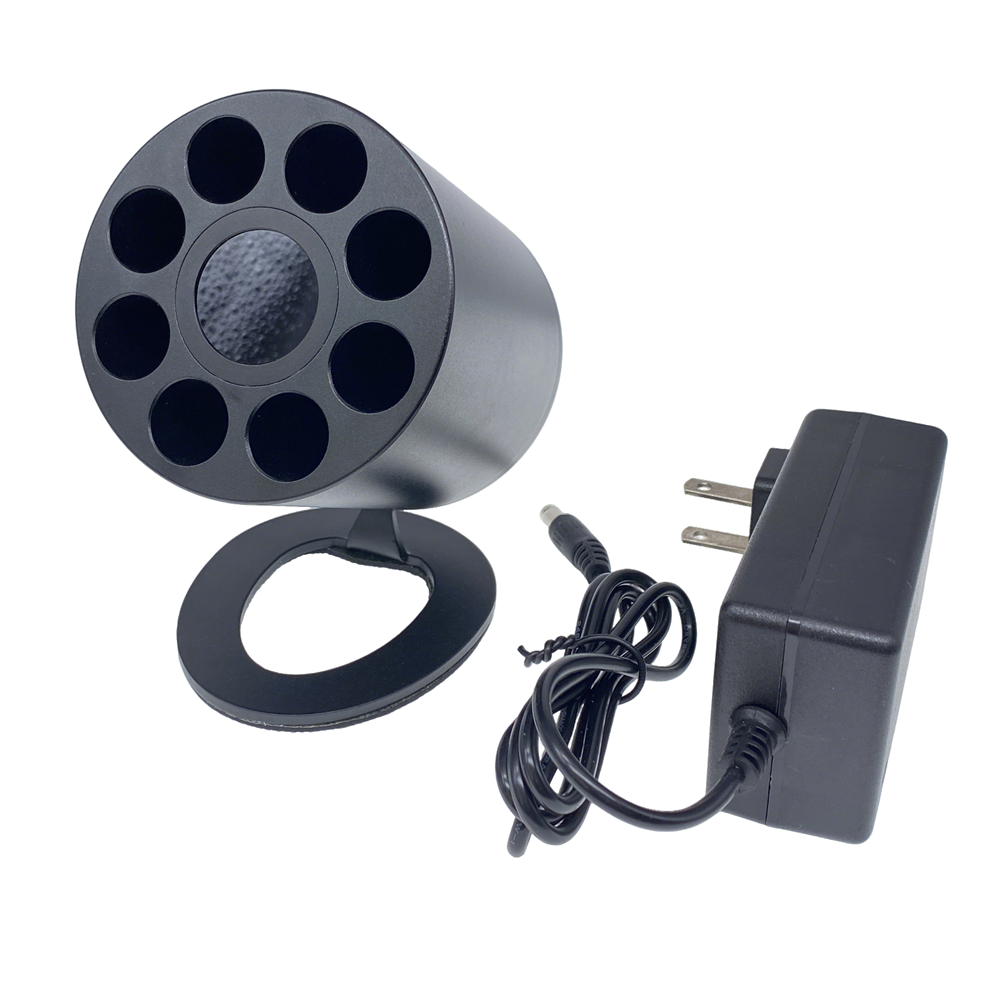

Package List:
1. 1 * AR Heater
2. 1 * Plug
3. 1 * User Manual
