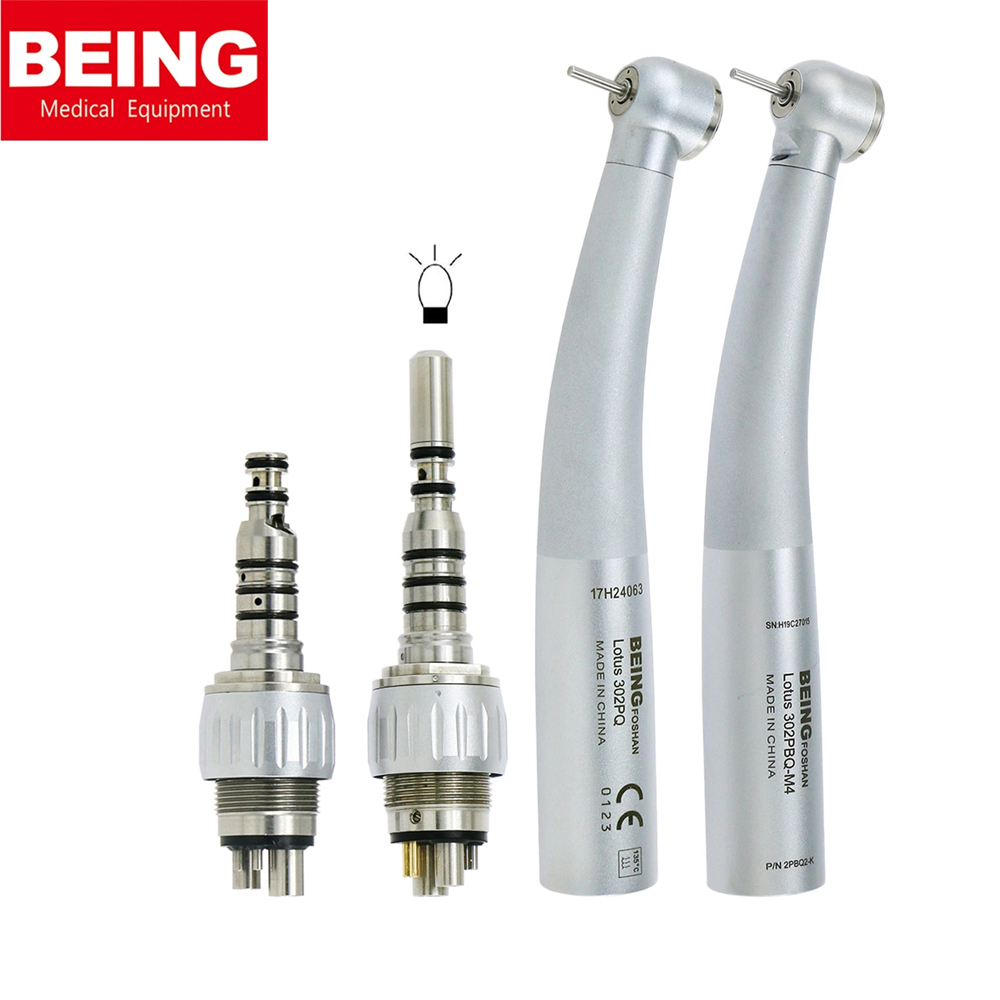

BEING Dental High Speed Turbine Fiber Optic Handpiece fit KaVo Coupler 4/6H
Introduction:
- The NON-RETRACTION structure in the handpiece, prevents suction of oral fluids in a patient's mouth into the water line of the handpiece at the spray water outlet port.
- New triple water spray system can cool the treated area and the bur effectively and roundly. Clogging of the the spray port is thus minimized.
- Connect with quick coupling, easy to load or unload the handpiece from the tubing of the dental unit. Water spray can be controlled in the quick coupling.

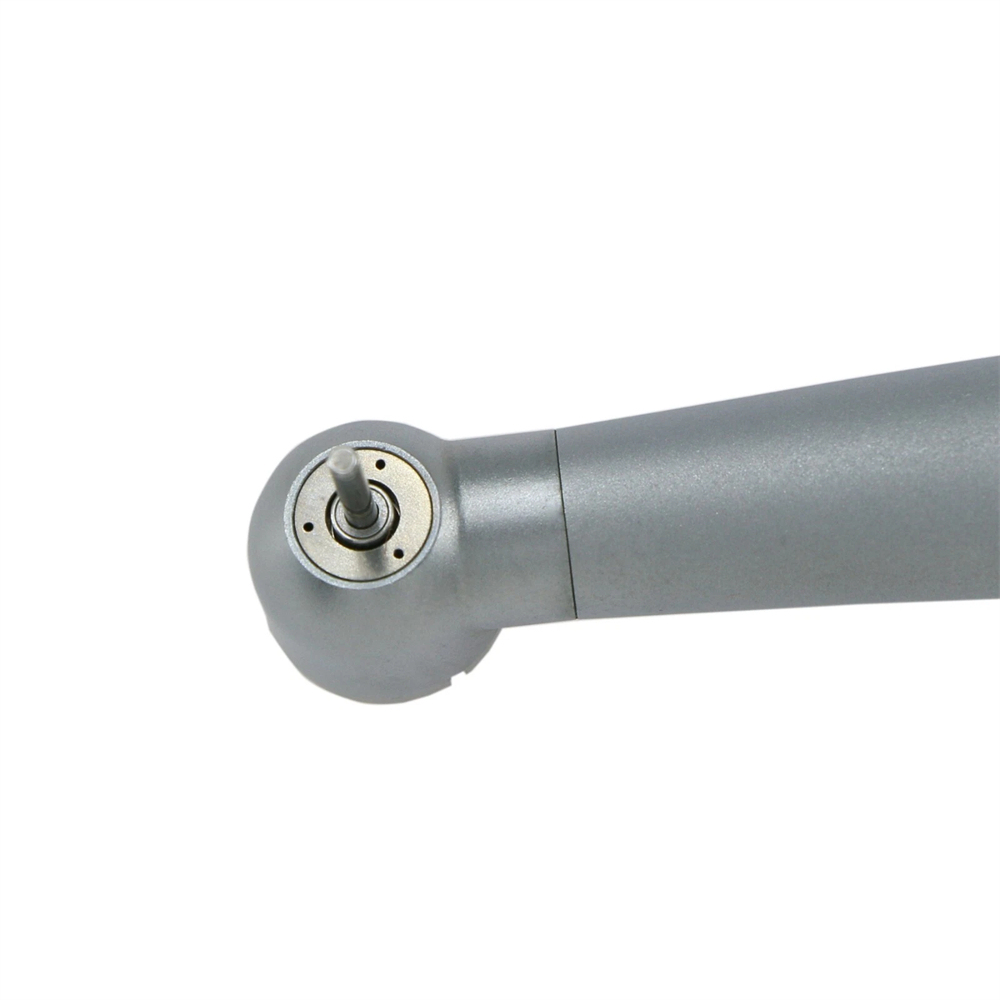

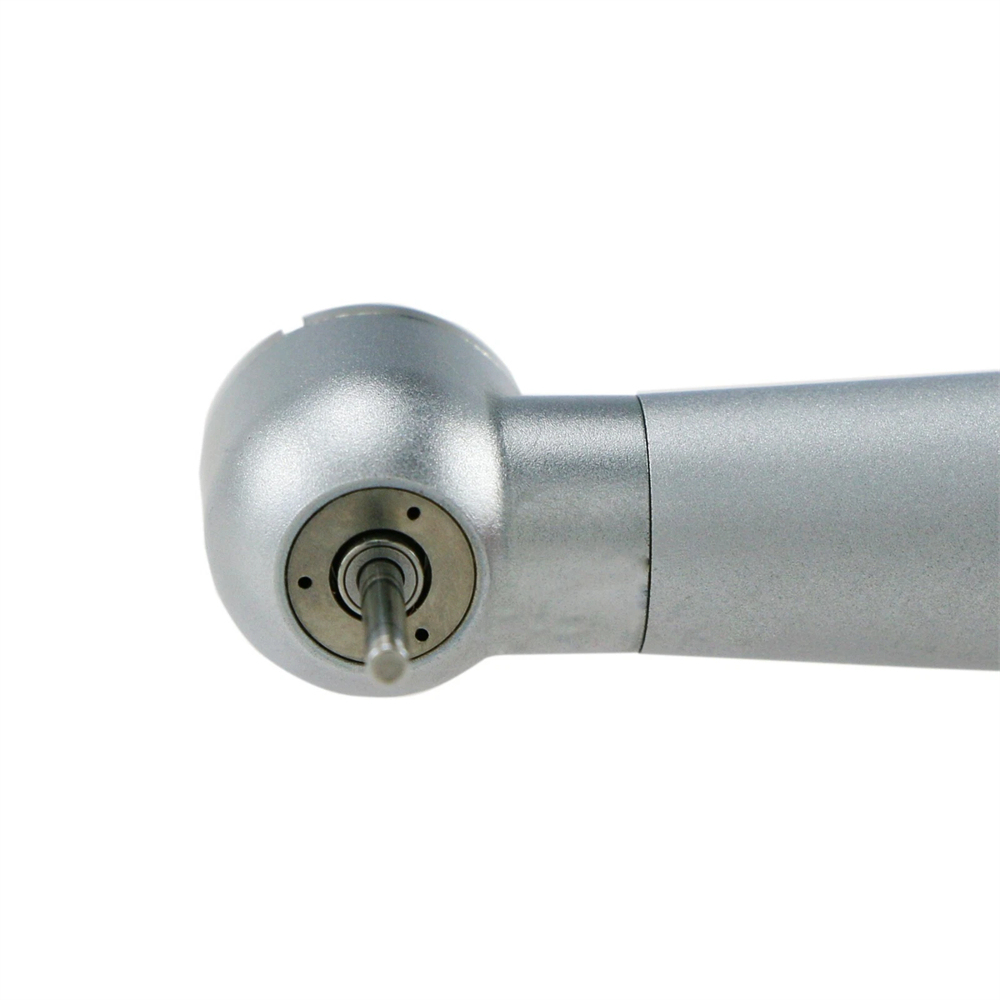

- The machine head adopts a button-type design, easy changing cartridge.Newly-designed handle, comfortable to hold and easy to clean. Both handpiece and quick coupling are autoclavable. (up to 135℃)
- High density Chinese bearings cartridge, with high cutting efficiency but less vibration and noise.

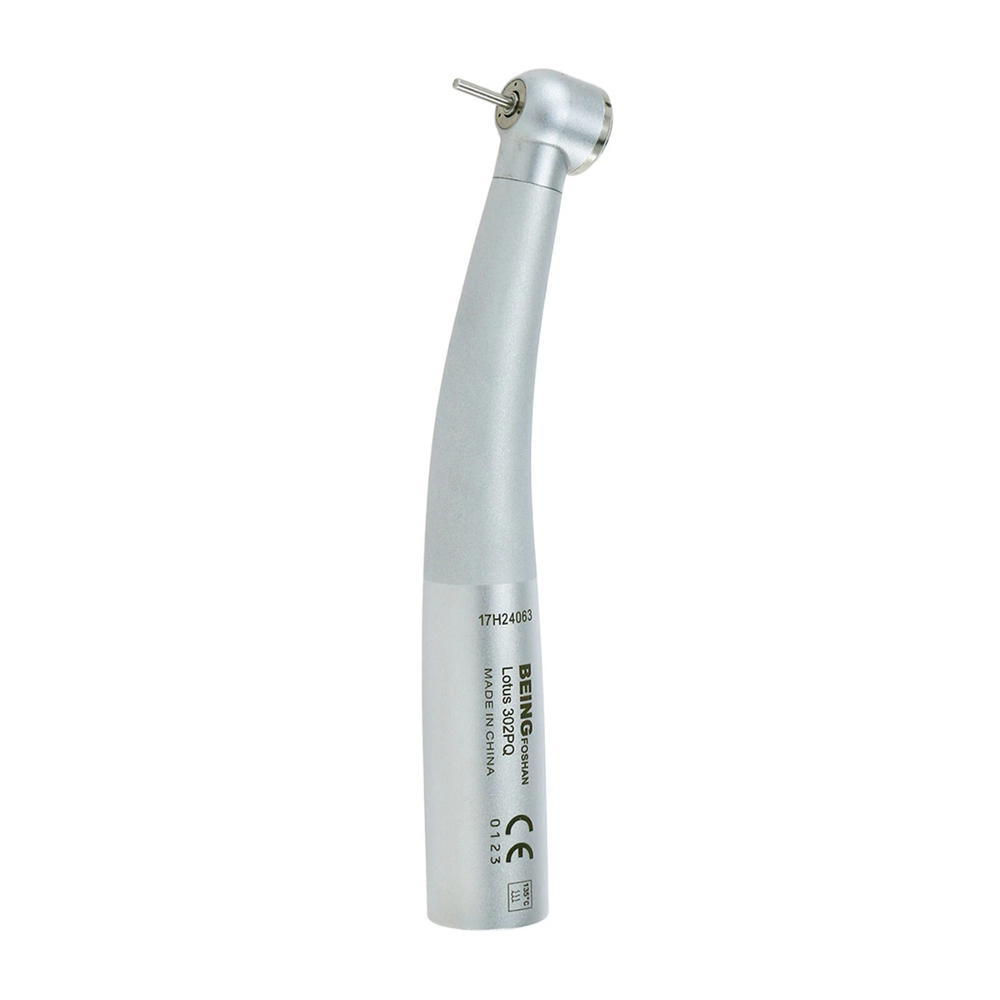

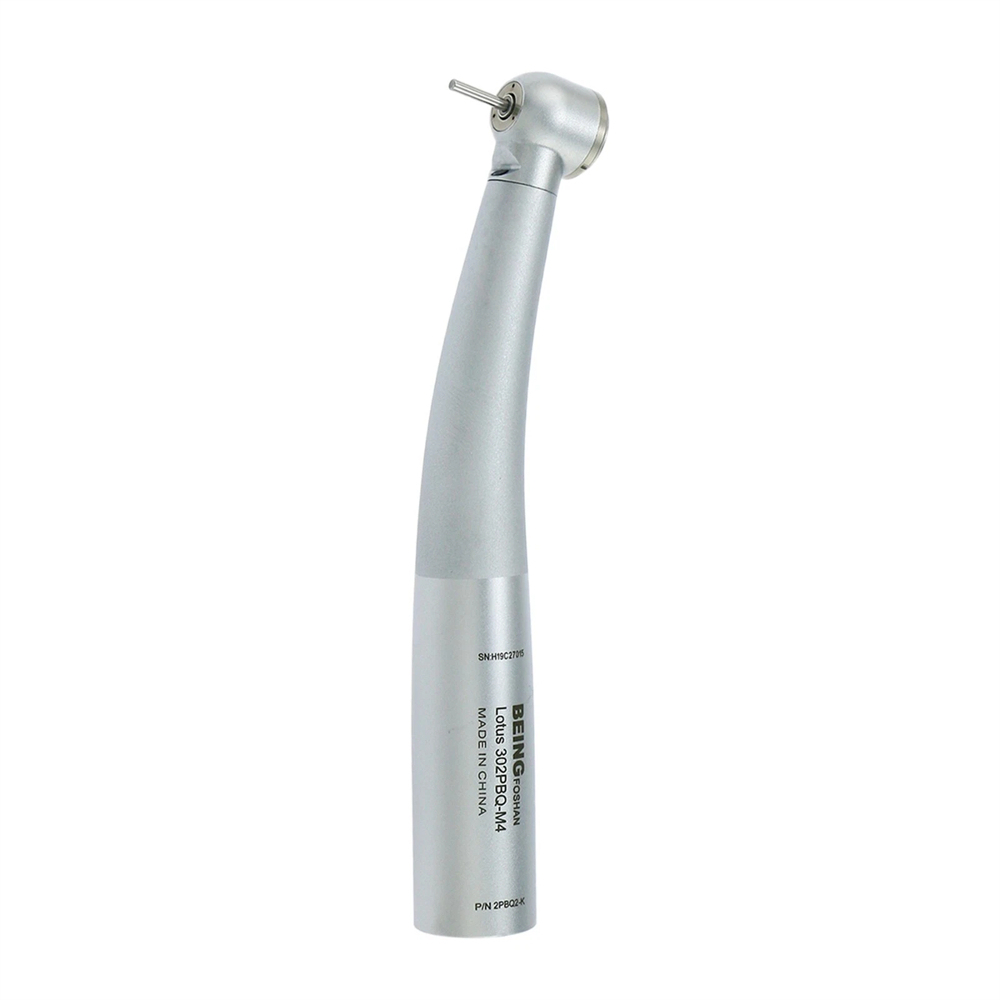

Description(302PQ-K, 302PBQ-K):
- BEING Brand
- Push button
- 3 hole spray, anti-retaction.
- With ceramic bearings, low noise and durable.
- All turbine rotor passed the Germany balancing machine.
- Air press at the back of the handpiece: 206~231 KPa (2.1~2.35kgf/cm2)
- Air pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0 kgf/cm2)
- Water pressure: 198Kpa (2 kg)
- Rotation speed: 300,000-380,000 rpm (Big Head)
- Head height: φ12.5 mmx13.02 mm (Big Head)
- Chuch type: Push button
- Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
- Noise≤70dB
- Intensity of light: 25000 lx
- Source of Light: LED bulb
- Voltage of bulb: 3.0~3.2 V

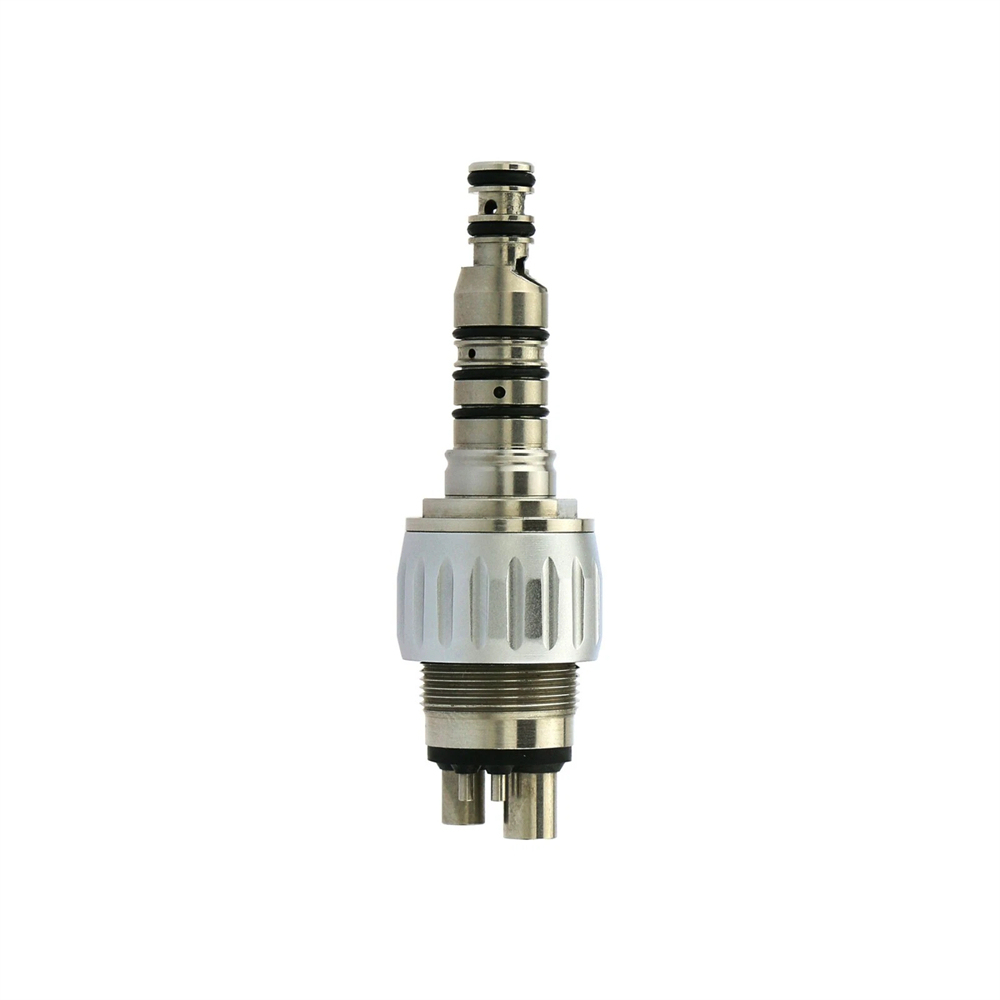

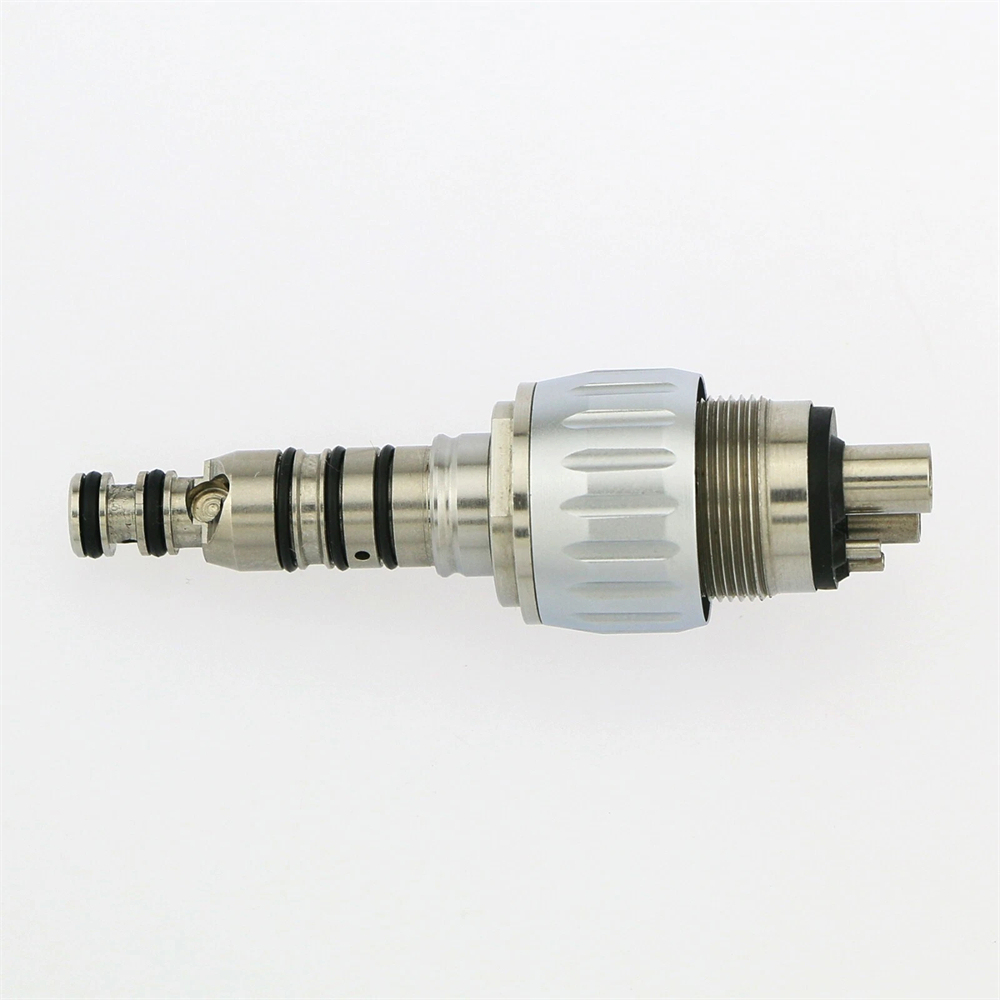

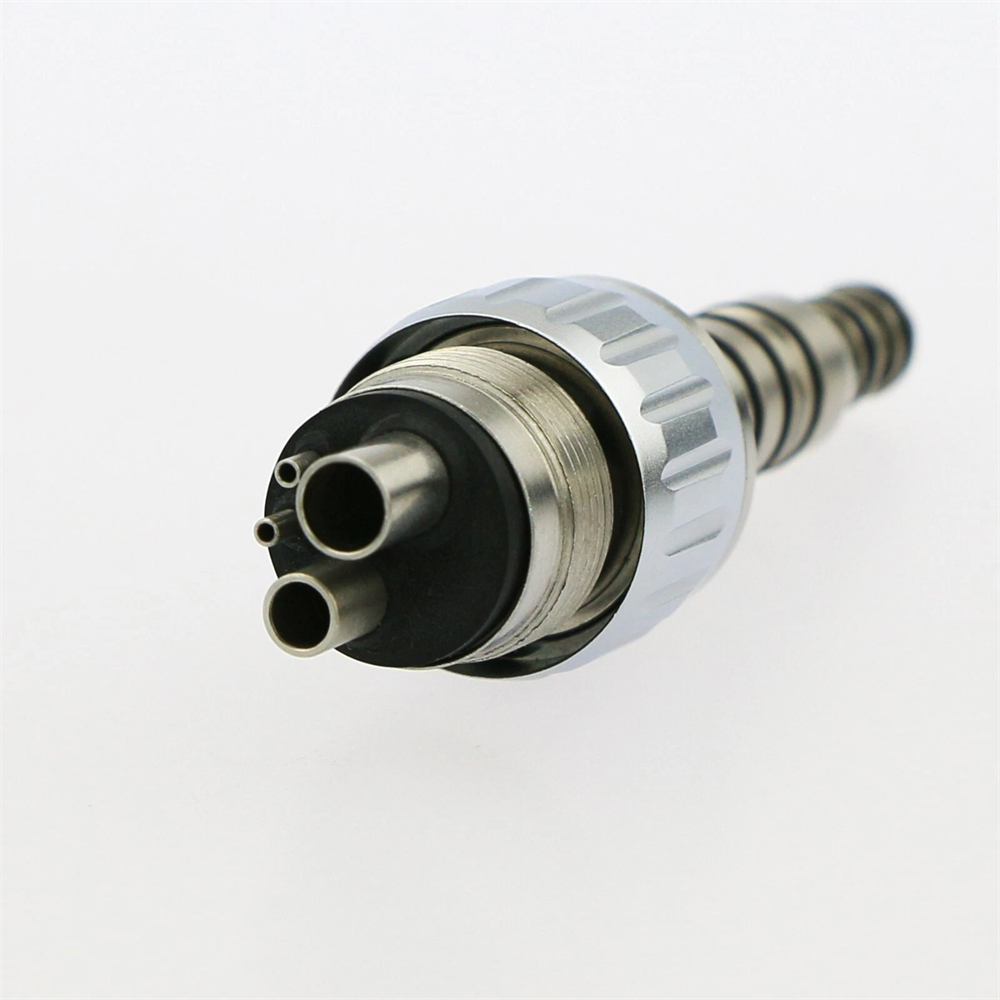

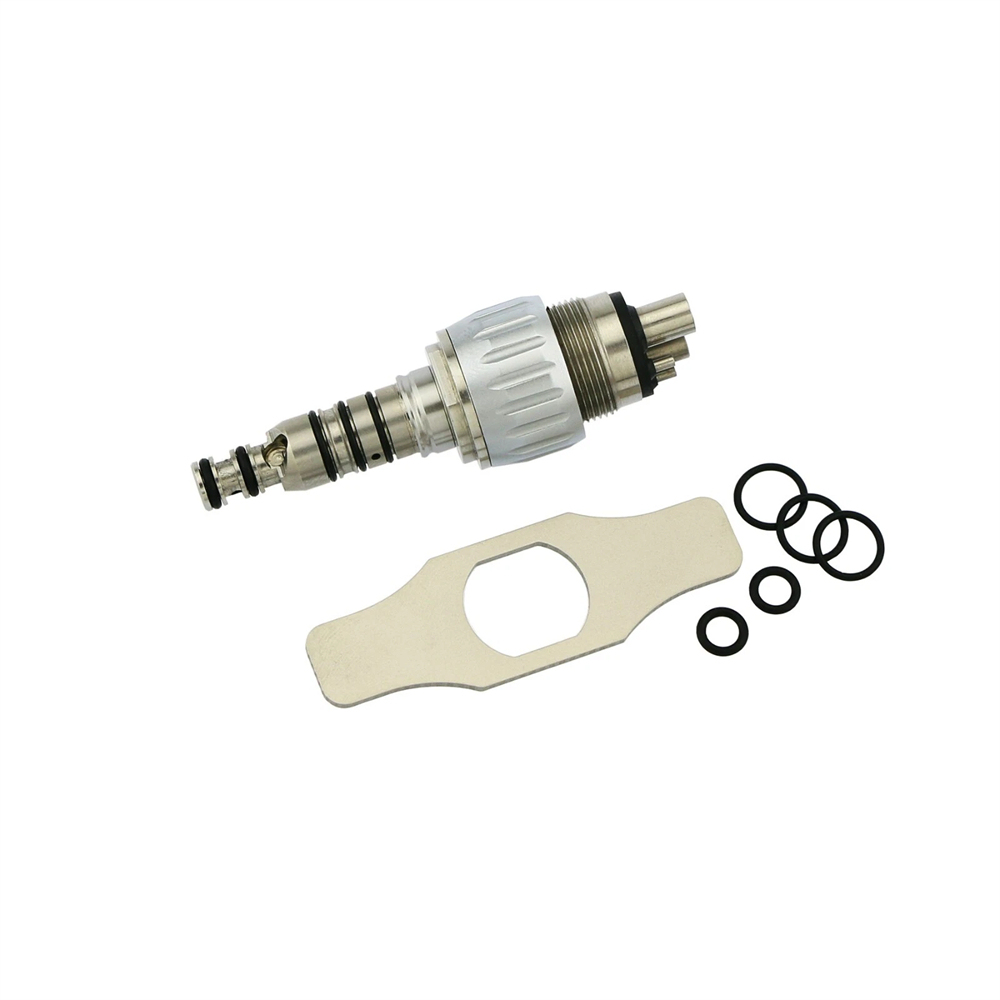

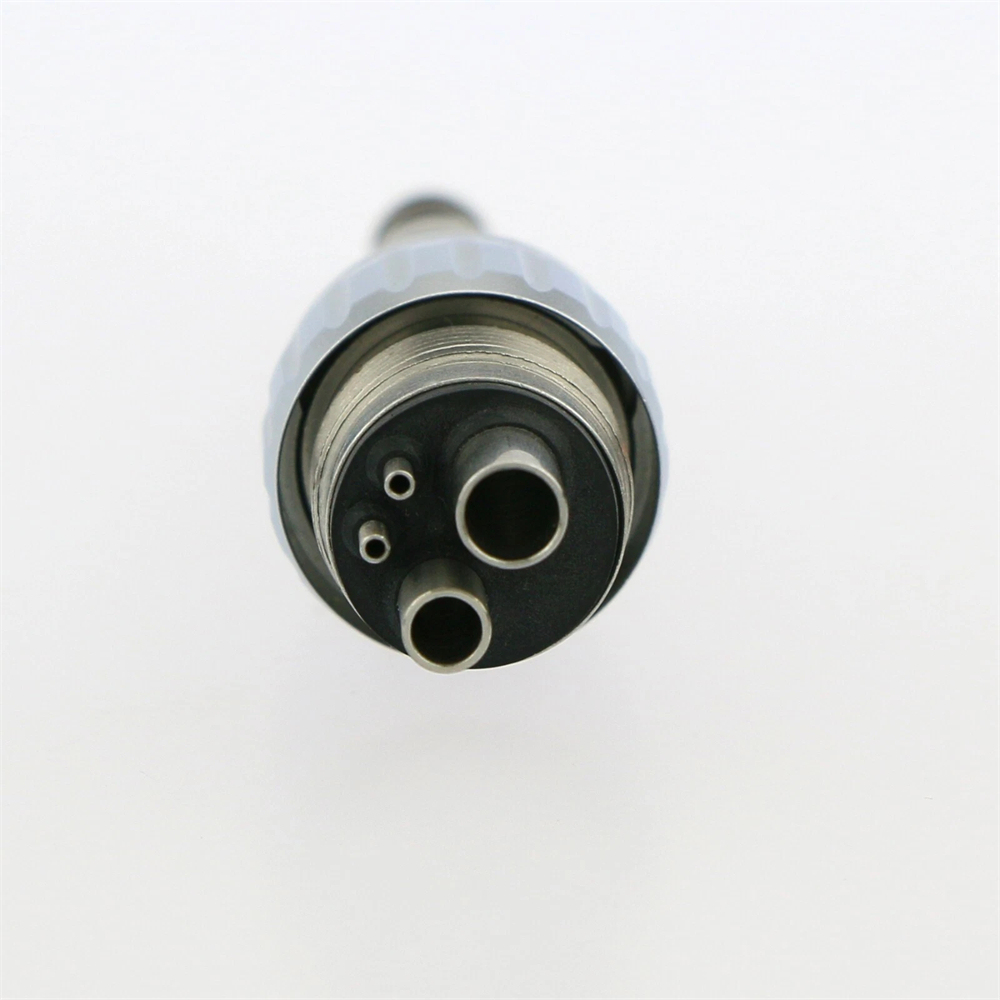

Coupler M4 fits KaVo MULTIflex Style:
- BEING Brand
- 4 Holes without LED
- KAVO multiflex style quick coupling
- 360 degree swivel
- Anti retraction
- Midwest 4 hole connection with drive air supply and exhaust, atomised water coolant and chip air
- Autoclavable

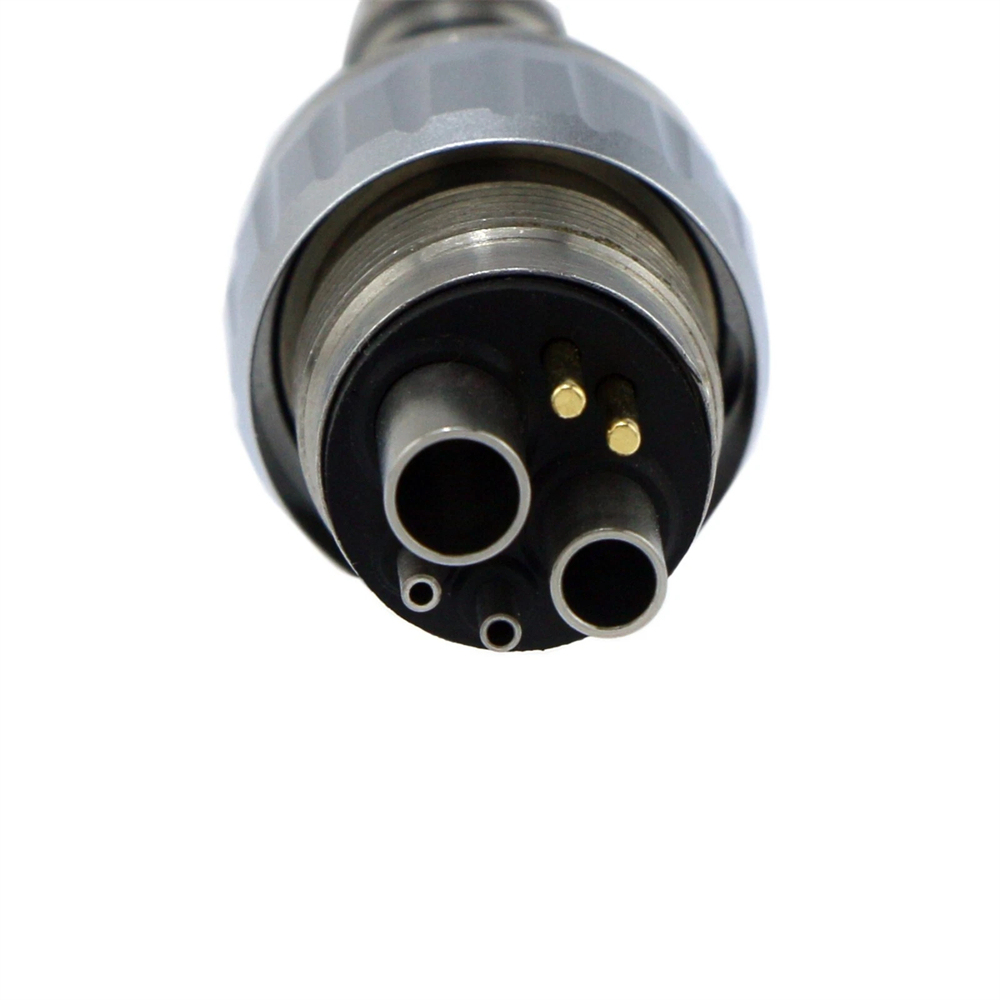

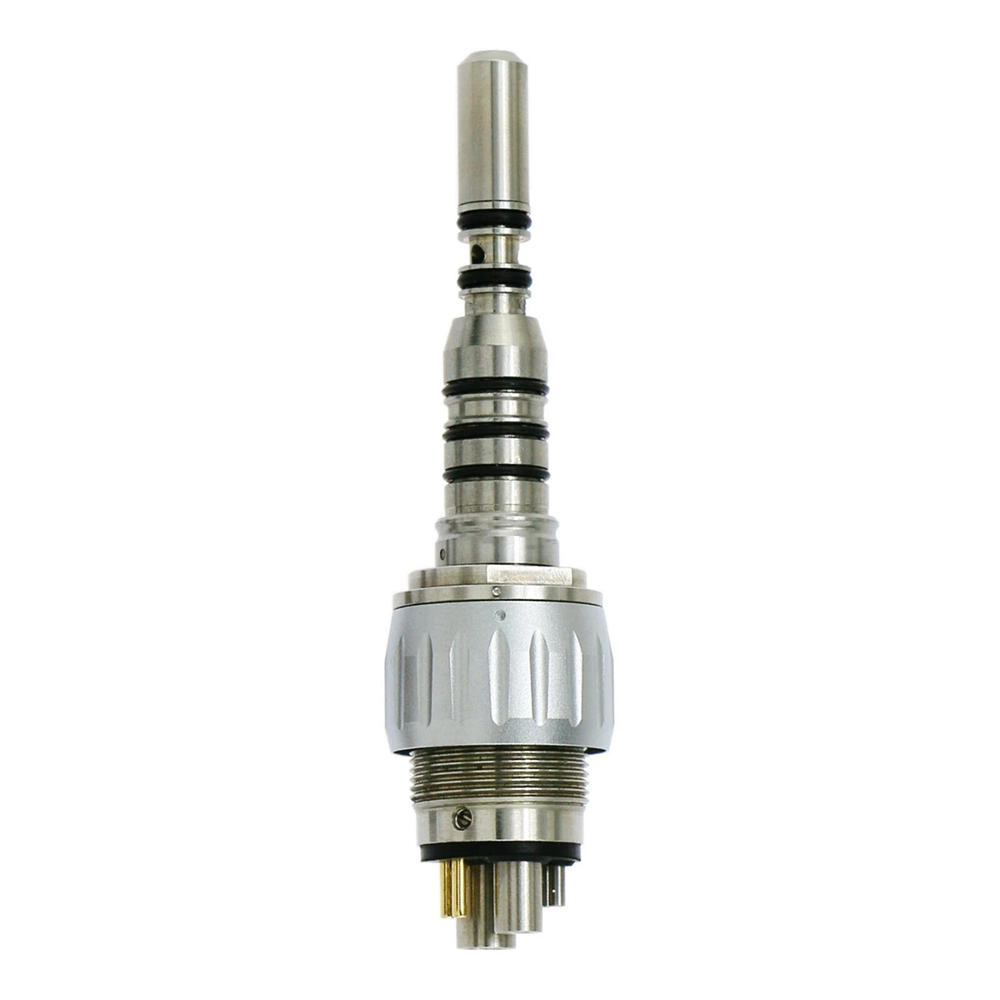

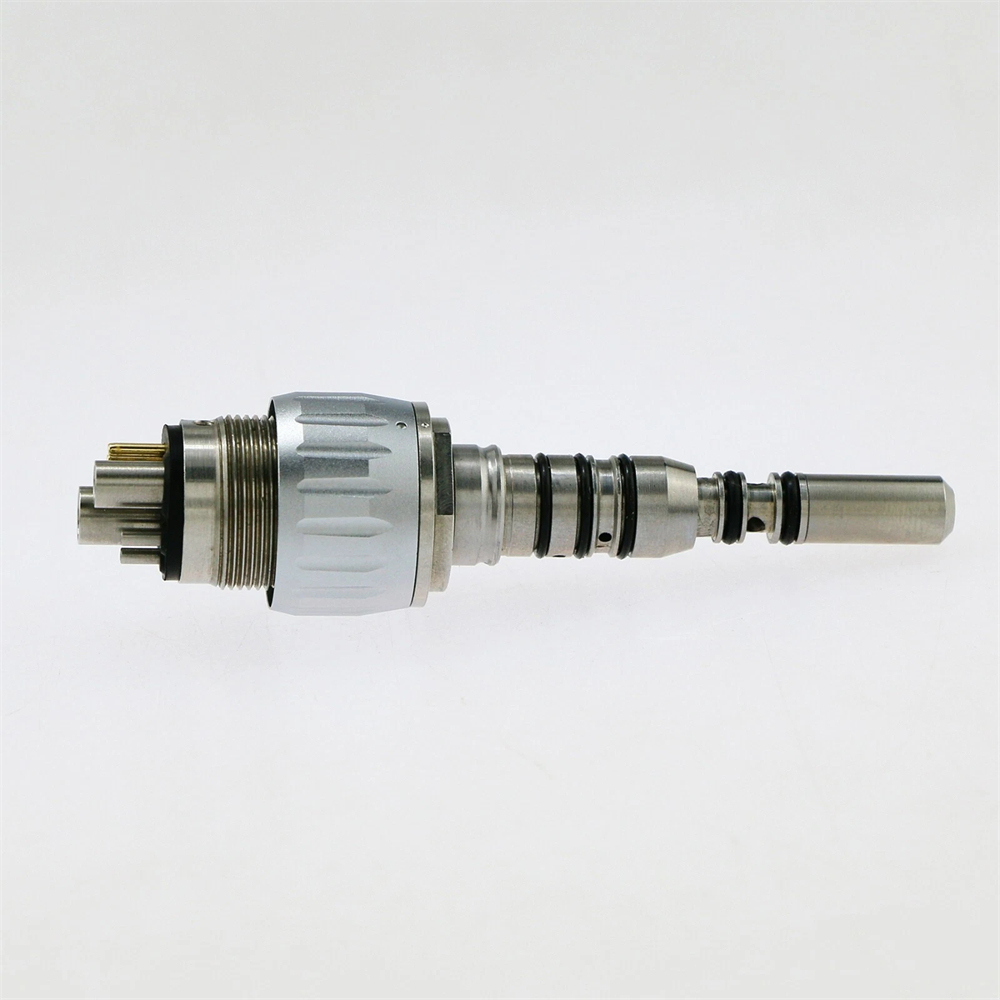

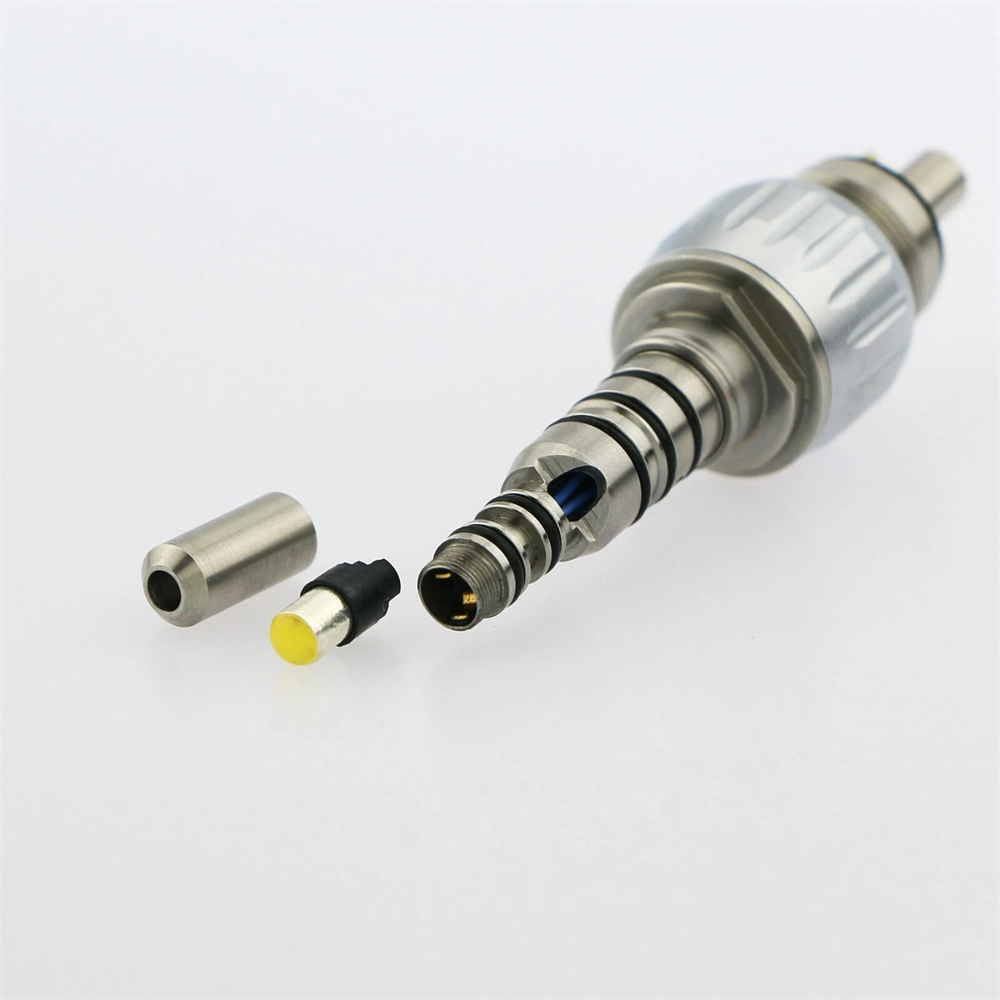

LED Coupling 6 Holes fits KAVO MULTIflex:
